| Type | Top Width (a) | Thickness (b) | Angle |
| SA | 12.7 mm (0.5”) | 7.0 mm (0.27”) | 40 ํ |
| SB | 16.7 mm (0.67”) | 9.0 mm (0.35”) | 40 ํ |
| SC | 22.2 mm (0.87”) | 11.0 mm (0.43”) | 40 ํ |
| Material | |
| Cord | |
| Temperature range |

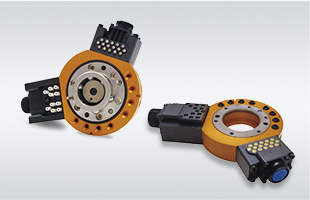

The BL QUICK-CHANGE Model Flex-100B is a device for quick and accurate automatic changing of multiple end-effectors, such as material handling, palletizing and deburring. Pneumatic blocks and electrical connector blocks can be selected for the Flex-100B.
Master plate Attachments
・6 bolts（M8×55）
・Stepped parallel pin×1
※Seal plate, O-ring and screws are pre-assembled.

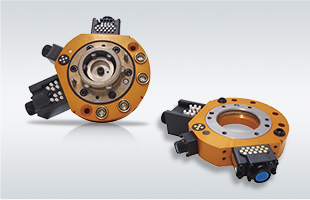

The BL QUICK-CHANGE Model Flex-300A is a device for automatic tool changing, specially designed for high payload capacity robots generally used in handling and palletizing. Optional electrical contacts or pneumatic ports can be selected for the Flex-300A.
Master plate Attachments
・6 bolts（M12×70）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.
The BL QUICK-CHANGE Model Flex-40B is a device for automatic tool changing, designed to enable robots and automated equipment to automatically change end-effectors or other peripheral tooling. A ball-locking mechanism allows for high coupling force and increased moment. To meet your specific application requirements, such as material handling, assembly and deburring, you may select various options in pneumatic ports and electrical contacts, including motor-driving ampere capacity.
Master plate Attachments
・6 bolts（M5×35)
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

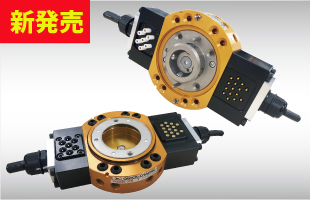

組立、バリ取り、研磨、工作機械へのハンドリング、洗浄工程等幅広い用途に適用できます。（25㎏可搬）
実績のあるクイックチェンジの着脱機構(ボールロック方式)の特長を継承し、用途に合わせた様々なコンタクトブロックが取付可能なクイックチェンジです。
マスタ・プレート添付品
・六角穴付皿ボルト(M4×35)×4
・段付平行ピンx1
・Oリング×4
The BL QUICK-CHANGE Model GC-300A is a device for automatic tool changing, specially designed for changing material handling welding guns or guns with built-in transformers in a spot-welding line. Primary current, air pressure and electrical signals (Servo) modules can be selected for the GC-300A.The GC-300A provides increased production line efficiency and cost effectiveness.
Master plate Attachments
・1 Insulation plate
・2 insulation pins
・6 insulation washers
・6 insulation pipes
・6 bolts（M10×30）
・1 locating pin
・6 plain washers
GIGA is a device for automatic tool changing, designed for robots handling heavy-payloads, with weight capacities of 350kg, 400kg, 500kg, and 700kg. GIGA is used for body in white handling and jig base changing in the automotive industry. It is also used in other industries for heavy load palletizing, and loading and unloading of CNC machines. In addition to handling applications, GIGA can be used in spot-welding gun changing applications. GIGA can also use our QUICK-CHANGE ZEUS Series modules.
Accessories for master plate

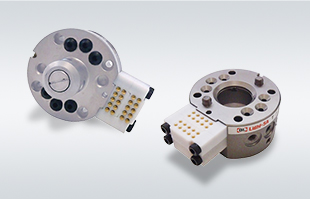

The BL QUICK-CHANGE Model Light-5A is a device for automatic tool changing, specially designed for low payload capacity robots, generally used in the assembly and handling of electrical parts, precision equipment and mechanical parts. During the unlocking process, the Light-5A Master plate pushes the Tool plate off (self-separating function). An optional shaft receptacle adaptor is available with the Light-5A to attach it to a shaft-type robot.。
Master plate Attachments
・4 bolts（M3×20）
・1 locating pin
QC-1 is automatic end-effector exchange device for light load robot for various applications like a assembling of precise electric device, precise machine and handling purpose in medical product, food product.
Master plate Attachments
・4 bolts（M3×15）
・1 locating pin (MSY3-8)
Master plate Attachments
・4 bolts（M4×30）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.
Showing 97–108 of 197 results
