Flexowell Conveyor Belts

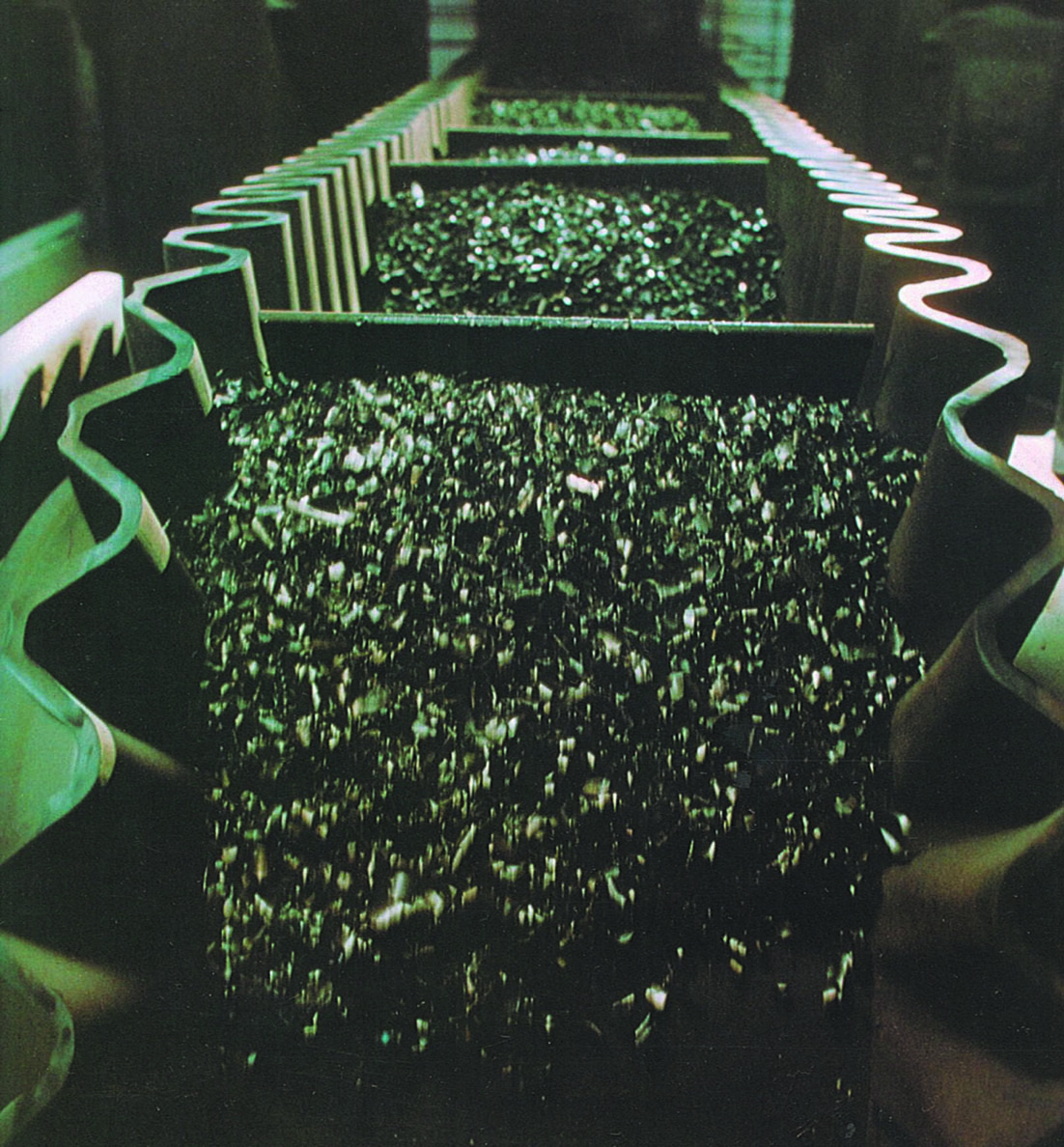

Special horizontal cleats and wave-shaped sidewalls enable Flexowell Belts to convey at angles up to 90° (vertical). Capital investment savings due to substantially reduced facility space, with high efficiency. The simple structure allows for easy maintenance and contributes to reduced running costs.

Flexowell is a registered trademark of ContiTech  Transport and system GmbH; used by permission.

Features

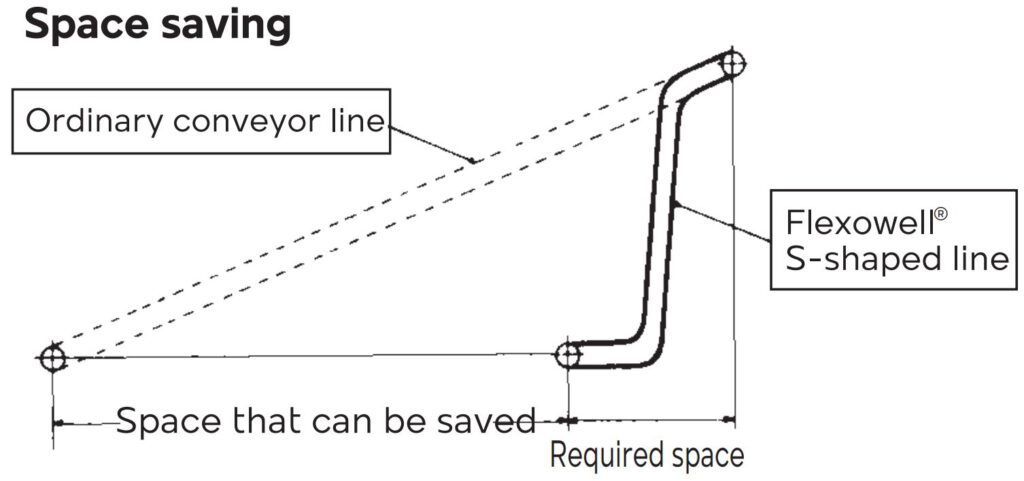

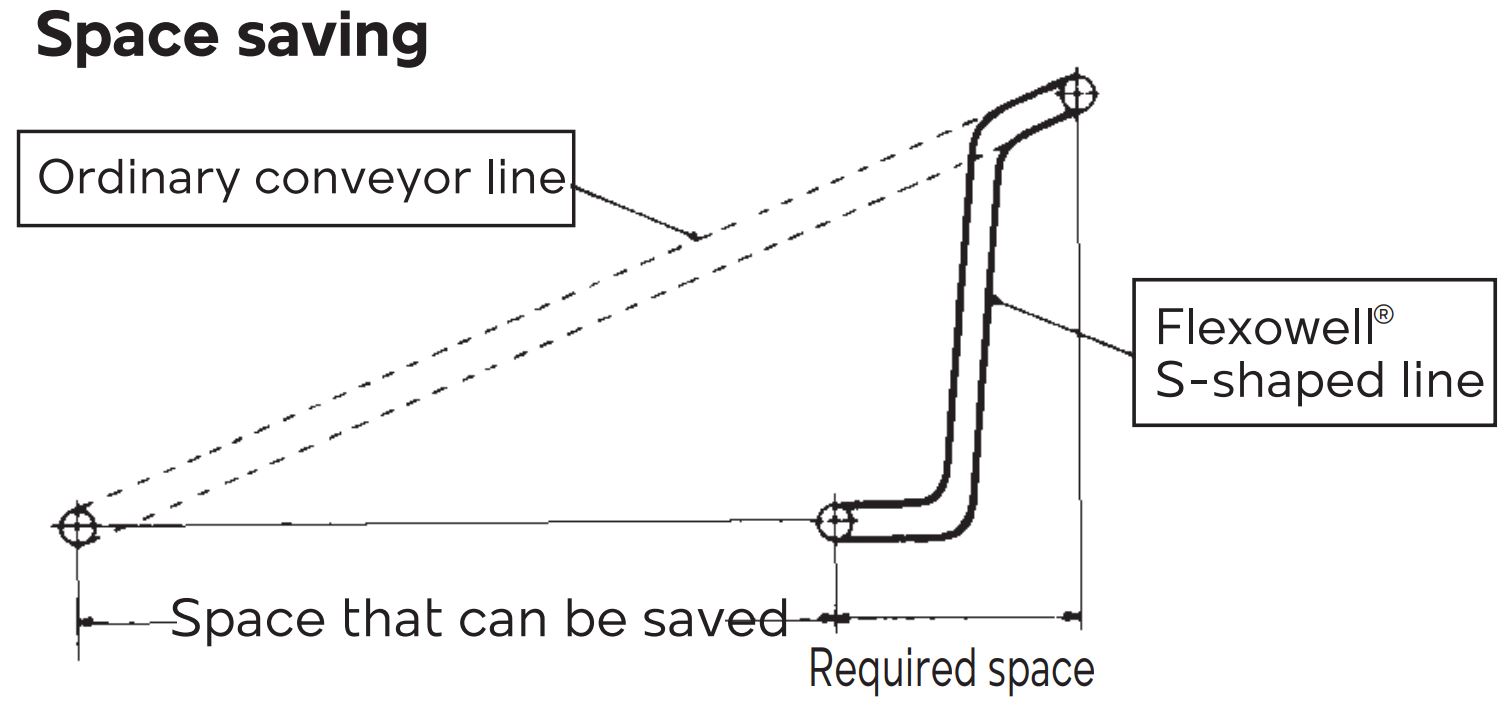

•  Space saving

Vertical conveyance substantially saves space compared with conventional conveyor facilities.

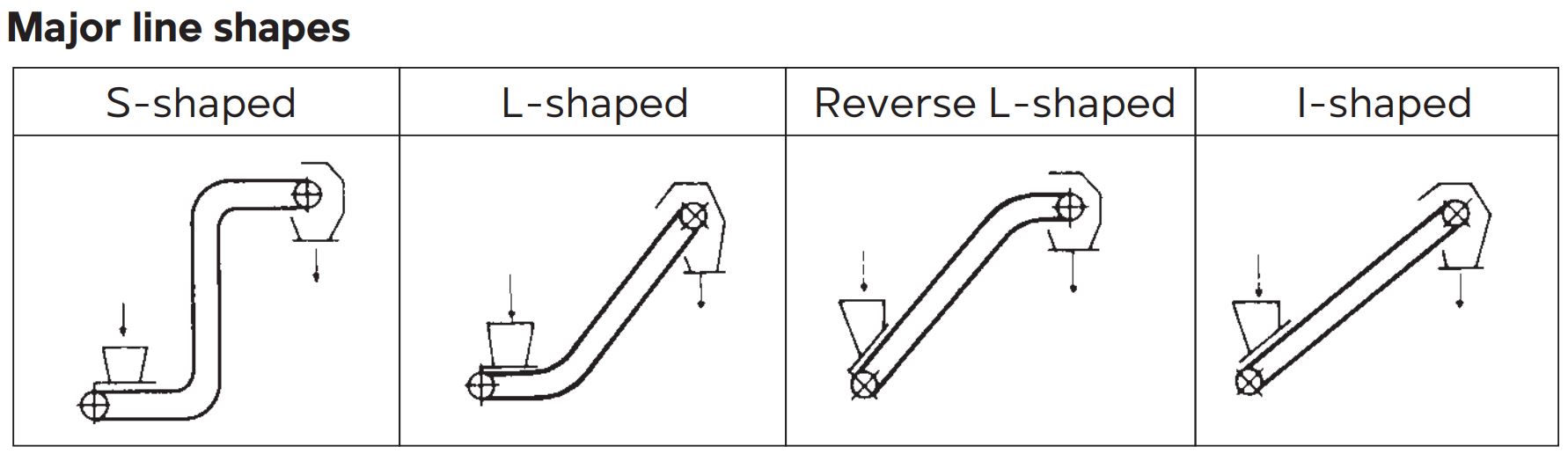

• Freely design conveyor line angles

Easy to design the required conveyor angle, from flat to steep incline, depending on the facility layout.

• High capacity conveyance

Significantly improved cross-section area, with dramatically increased load capacity compared with trough conveyors.

• High capacity conveyance

Significantly improved cross-section area, with dramatically increased load capacity compared with trough conveyors.

• Reduced facility costs

Small pulley diameters may be used, without the need for skirt boards. Facility costs are reduced with flat rollers.

Structure

Components

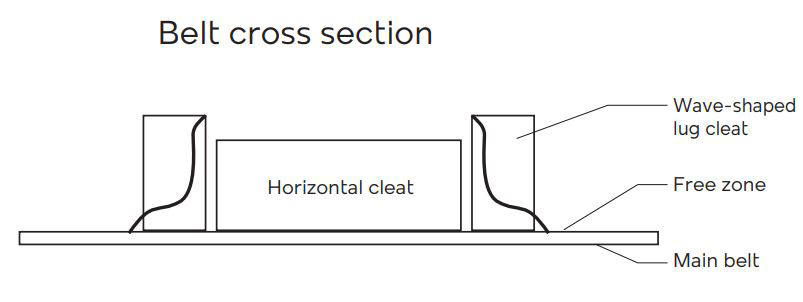

Flexowell® Belts are made up of the main body belt, wave-shaped sidewalls and horizontal cleats. The three components are rigidly cold-bonded by mechanical means. Please consult with us, as various combinations are available, depending on the items conveyed, volume and the angle of inclination.

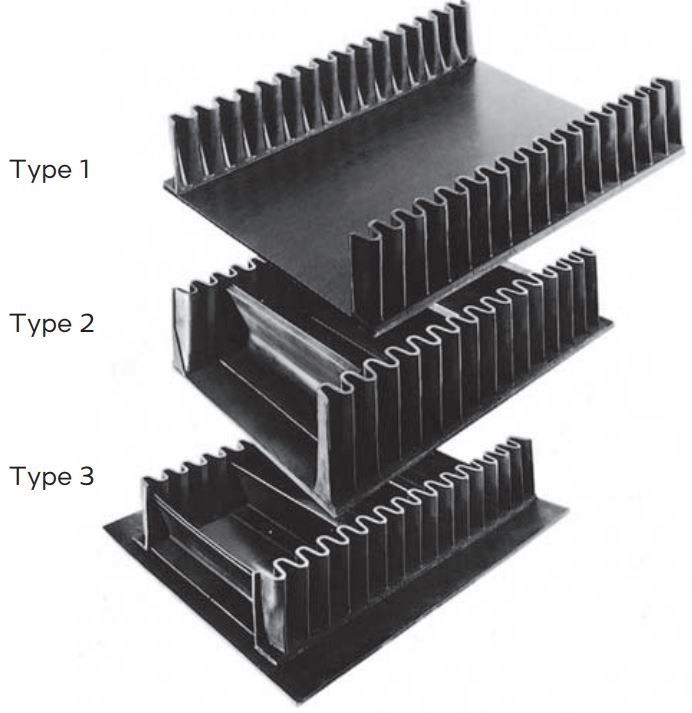

Combination types (Types 1, 2 and 3 are standard)
Type 1: No free zone, no horizontal cleats
For lines with 0-16° inclinations, without angle change in conveyance.
Type 2: No free zone, with horizontal cleats
For sharp inclines, without angle change in conveyance.
Type 3: With free zone and horizontal cleats
For sharp inclines, with angle change(s) in conveyance.
Type 4: With free zone, without horizontal cleats
For lines with 0-16° inclinations, with angle change(s) in conveyance.

Standard combination (Flexowell)
