HAKKO E SJ -BK

  • งานเคมี
  • สารทำละลาย
  • งานพิมพ์สี
  • งานพ่นสี

สอบถามข้อมูลเพิ่มเติม

ดาวน์โหลดแคทตาล็อก

Flexible Fluorine Resin Tubing / Hose Series
สายอเนกประสงค์ยืดหยุ่นสูง


HAKKO E SJ -BK

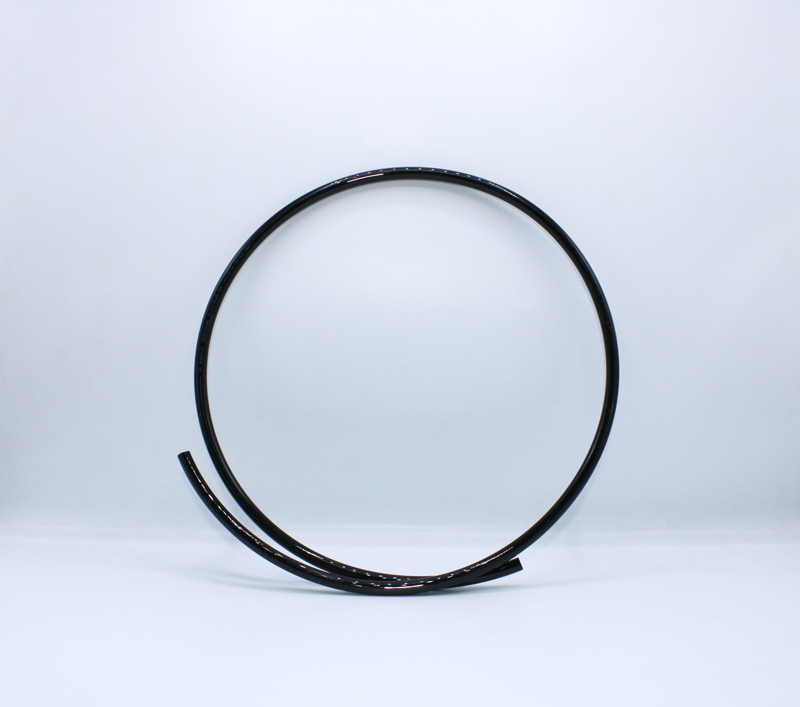

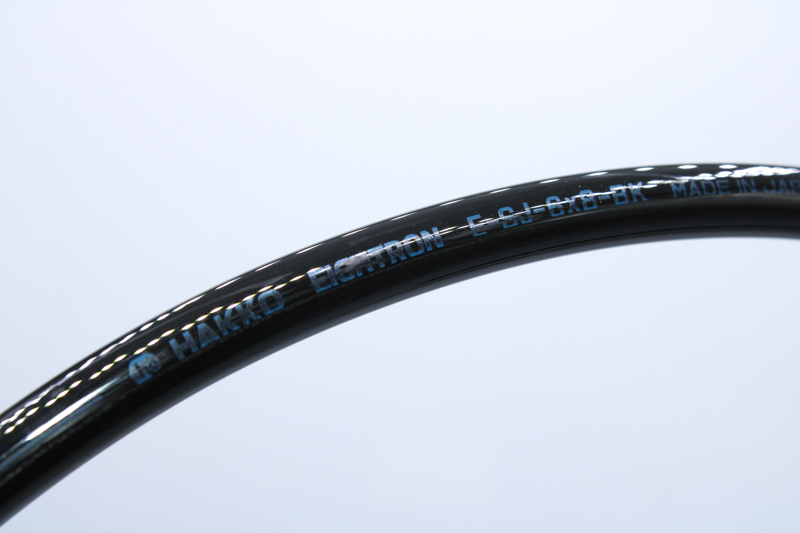

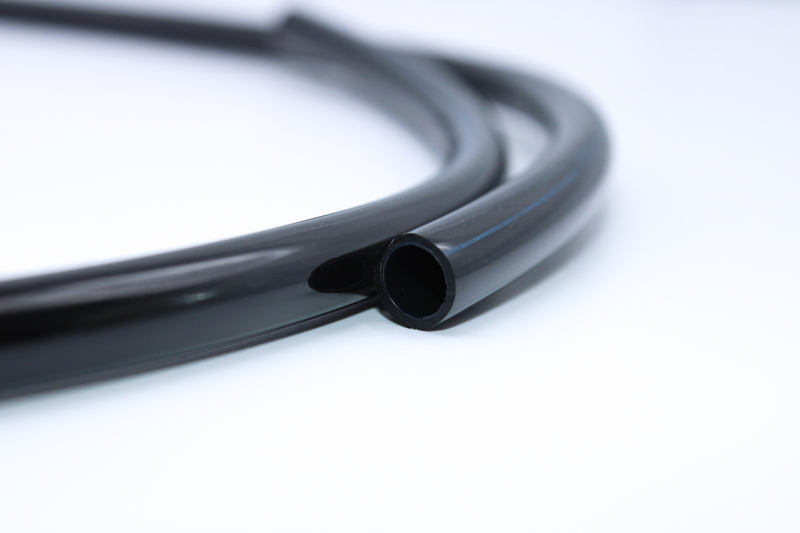

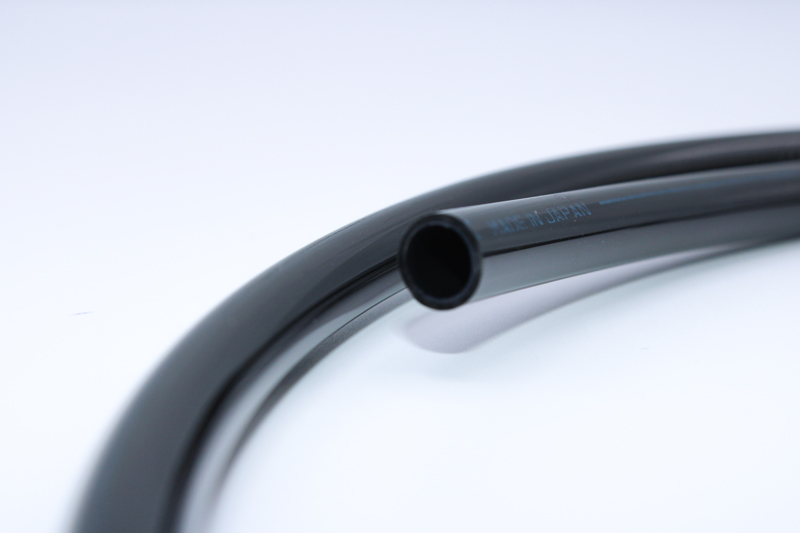

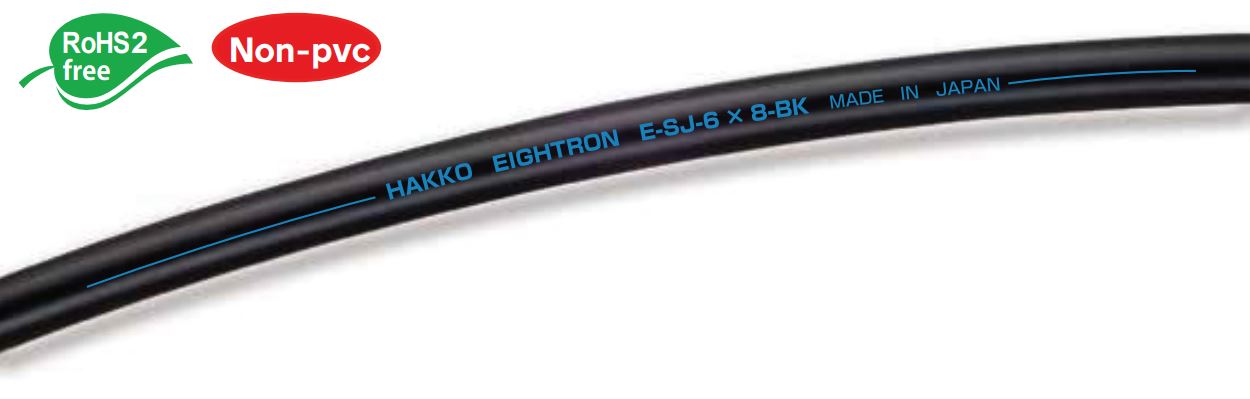

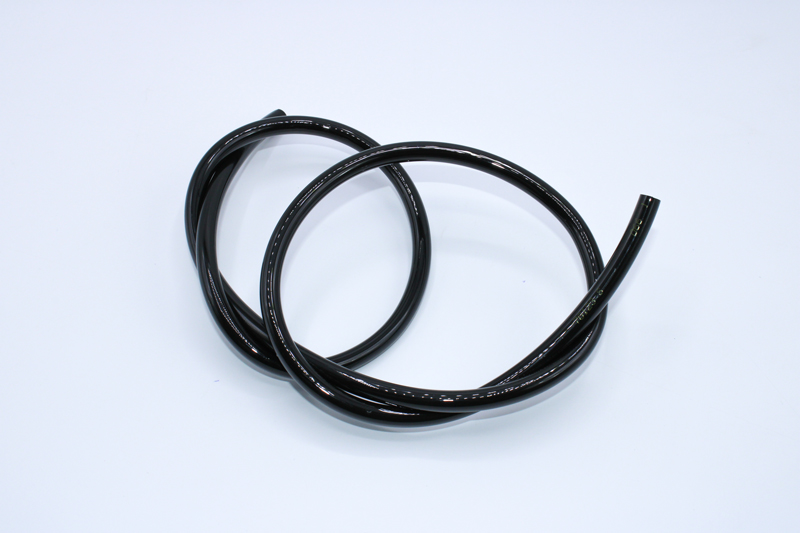

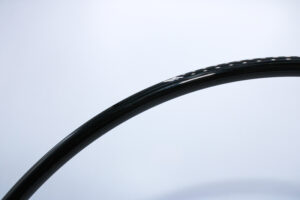

Flexible Fluorine (ETFE) Resin Tubing Black

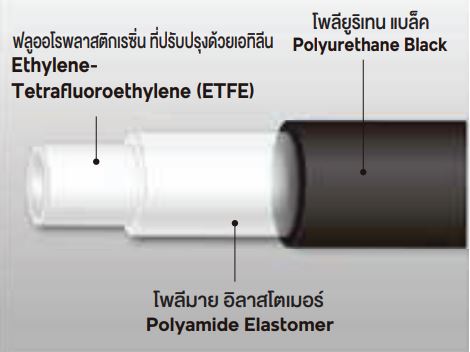

วัสดุ/โครงสร้าง (Materials/Structure)


ลักษณะและการใช้งาน (Characteristics & Functions)

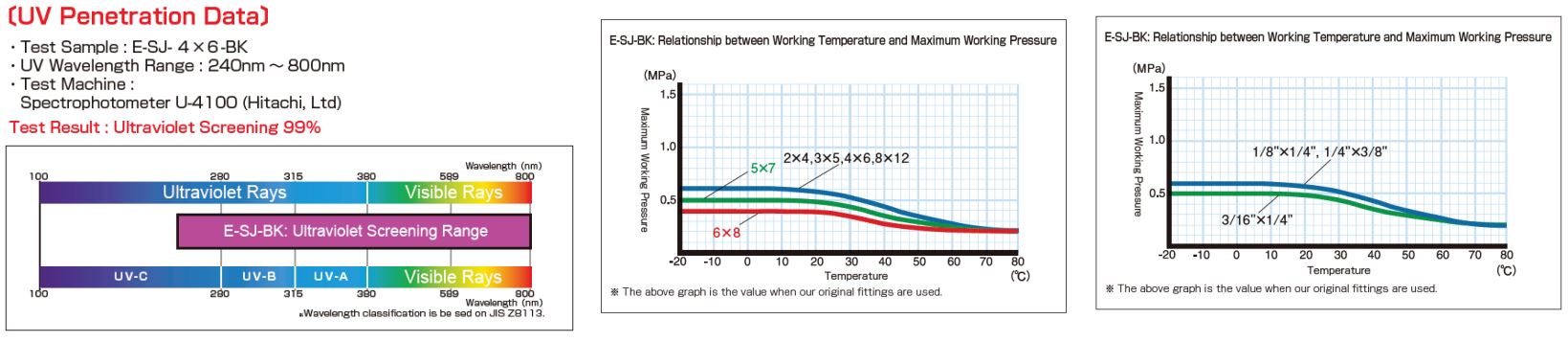

  • UV Cut…By cutting ultraviolet, E-SJ-BK is suitable for transferring UV-based paints, adhesives, and inks.
  • Chemical Resistance….Since the inner layer is made of ETFE fluorine resin, E-SJ-BK is resistant to most of the chemical substances.

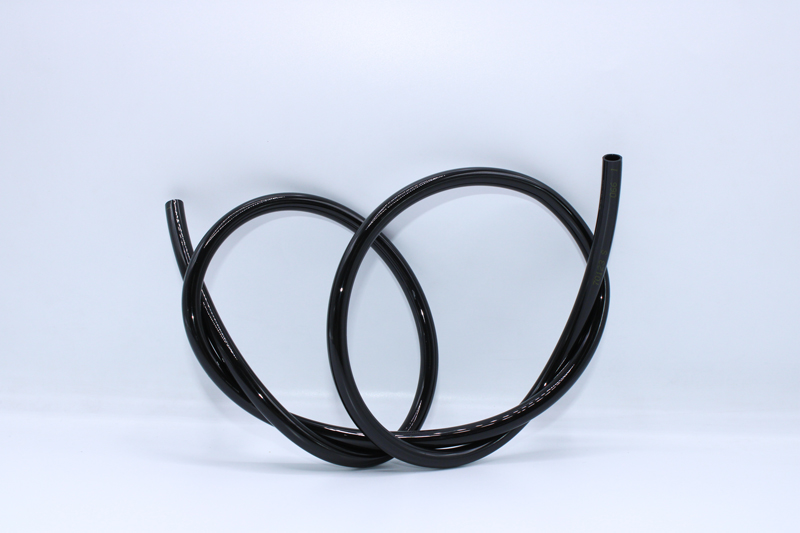

  • Flexibility…Due to the laminated structure, compared with the conventional single-layer fluorine tubing, E-SJ-BK is superior in flexibility.
    This improves your work efficiency.
  • UV Cut…By shielding ultraviolet, E-SJ-BK is suitable for transferring UV-based paints, adhesives and inks.
  • Hard to Break…Unlike a single-layer fluorine tubing, E-SJ-BK is hard to break. (Even if it breaks, you can restore its shape to some extent.)
  • Non-Adhesiveness…Since fluorine resin is superior in water-proof and non-adhesiveness, you can wash out the fluids very easily.
  • Plasticizer-Free…E-SJ-BK does not contain plasticizer (an elution material) at all. E-SJ-BK is an oil-free tubing.
  • RoHS2…E-SJ-BK is compliant with RoHS2 requirements (directive 2011/65/EU:RoHS2).
    (RoHS 2 Compliant products mean that they do not contain or below the threshold of 10 substances.)
  • Original Fittings…By using our original fittings (E-FTS-only for mm size), you can avoid accidents which are caused by incorrect choices of hose
    and fittings.
  • UV Cut …ด้วยการป้องกันรังสีอัลตราไวโอเลต E-SJ-BK จึงเหมาะสำหรับการถ่ายโอนสีกาวและหมึกพิมพ์ที่มีส่วนผสมของ UV
  • ความทนทานต่อสารเคมี … เนื่องจากชั้นในทำจากเรซินฟลูออรีน ETFE E-SJ-BK จึงทนทานต่อสารเคมีส่วนใหญ่
  • ความยืดหยุ่น … เนื่องจากโครงสร้างลามิเนตเมื่อเทียบกับท่อฟลูออรีนชั้นเดียว E-SJ-BK จึงมีความยืดหยุ่นที่เหนือกว่า สิ่งนี้ช่วยเพิ่มประสิทธิภาพในการทำงานของคุณ
  • ยากที่จะทำลาย … ซึ่งแตกต่างจากท่อฟลูออรีนชั้นเดียว E-SJ-BK นั้นแตกยาก (แม้ว่าจะแตก แต่คุณก็สามารถฟื้นฟูรูปร่างได้บ้าง)
  • Non-Adhesiveness … เนื่องจากฟลูออรีนเรซินมีคุณสมบัติในการกันน้ำและไม่ยึดติดได้ดีกว่าคุณจึงล้างของเหลวออกได้ง่ายมาก
  • พลาสติไซเซอร์ฟรี … E-SJ-BK ไม่มีพลาสติไซเซอร์ (สารชะล้าง) เลย E-SJ-BK เป็นท่อไร้น้ำมัน
  • RoHS2 … E-SJ-BK เป็นไปตามข้อกำหนด RoHS2 (คำสั่ง 2011/65 / EU: RoHS2) (ผลิตภัณฑ์ที่เป็นไปตามข้อกำหนด RoHS 2 หมายความว่าไม่มีหรือต่ำกว่าเกณฑ์ 10 สาร)
    อุปกรณ์เดิม … ด้วยการใช้อุปกรณ์เดิมของเรา (E-FTS สำหรับขนาดมม. เท่านั้น) คุณสามารถหลีกเลี่ยงอุบัติเหตุที่เกิดจากการเลือกท่อและอุปกรณ์ที่ไม่ถูกต้อง

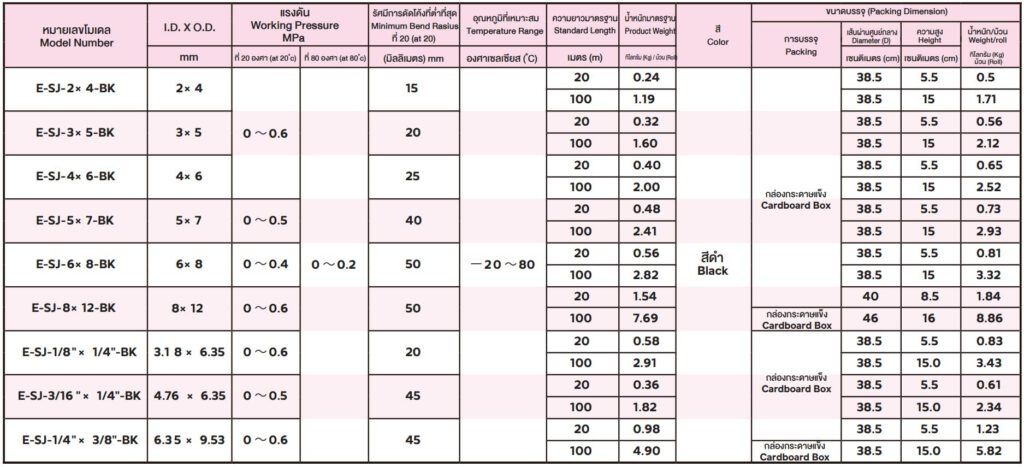

ข้อมูลจำเพาะ (Characteristics & Functions)

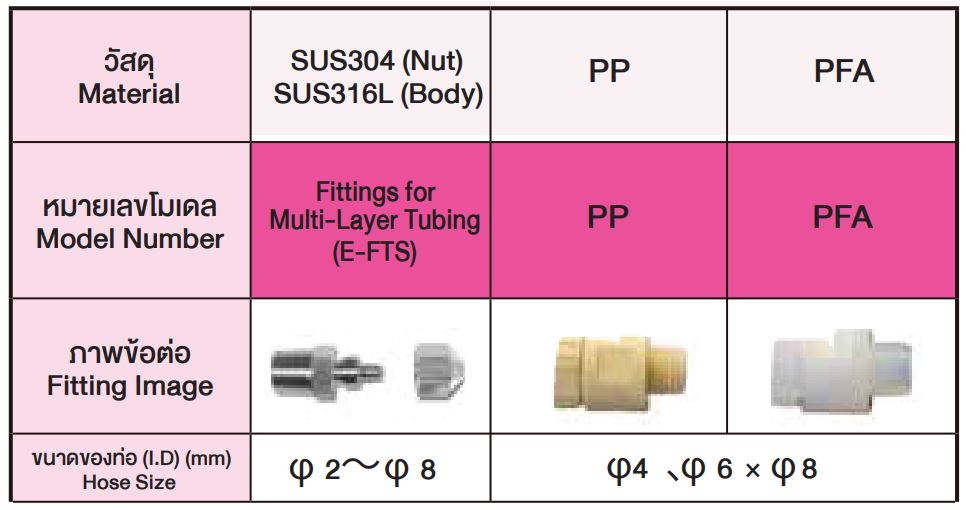

อุปกรณ์เสริม/ข้อต่อแบบดั้งเดิม (Original Fittings)
