Package Belts (for inclined conveyance)

Package Belts are used to transport goods on inclines. A mesh pattern is inscribed into the top cover rubber to prevent the collapse or spilling of items conveyed. The special pattern also cushions impact and alleviates vibration, so the belt is suitable to convey breakable items.

Applications

• Inclined conveyance of lightweight goods and packages.
• Conveyance of breakable items (bottles, etc.) and items that might easily slide on an incline.

Note 1: Unsuitable for oily goods.
Note 2: Not for use with powders.

Features

• There is no bottom cover rubber on the belt so the coefficient of friction is less, and it is suitable for use on table runs.
• The mesh pattern of the top cover rubber cushions impact, alleviates vibration and prevents slippage. Inclined conveyance up to 30° is possible, depending on the items transported.

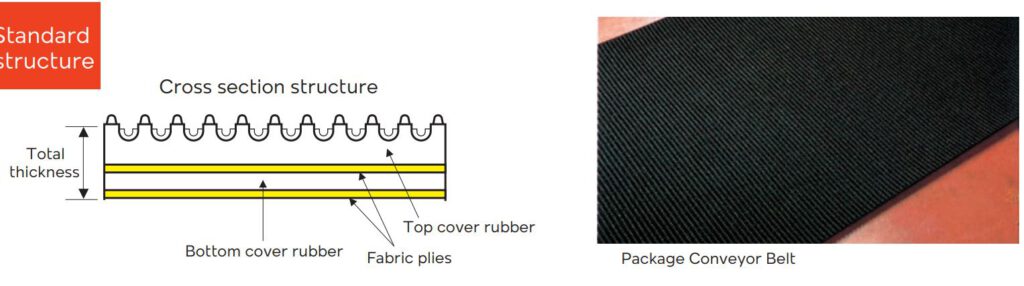

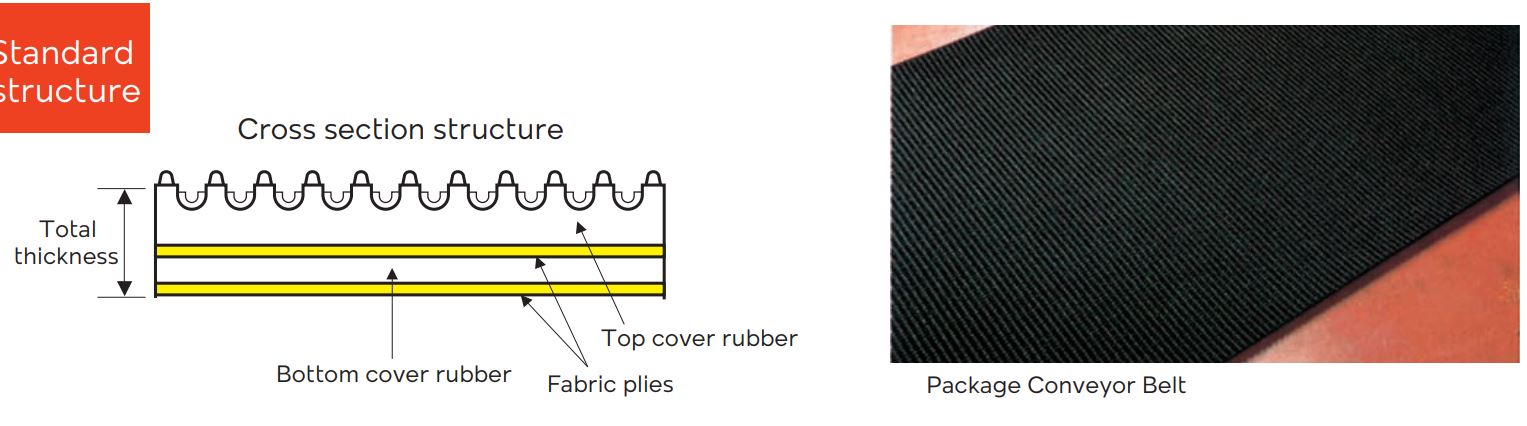

Standard structure

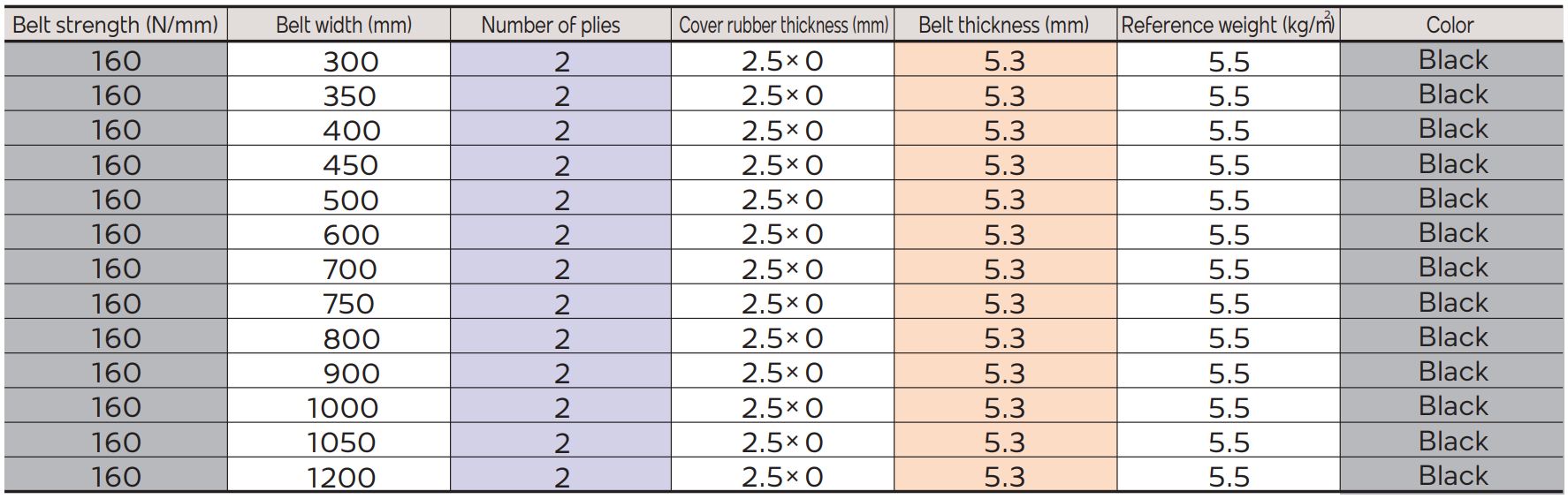

Standard specifications

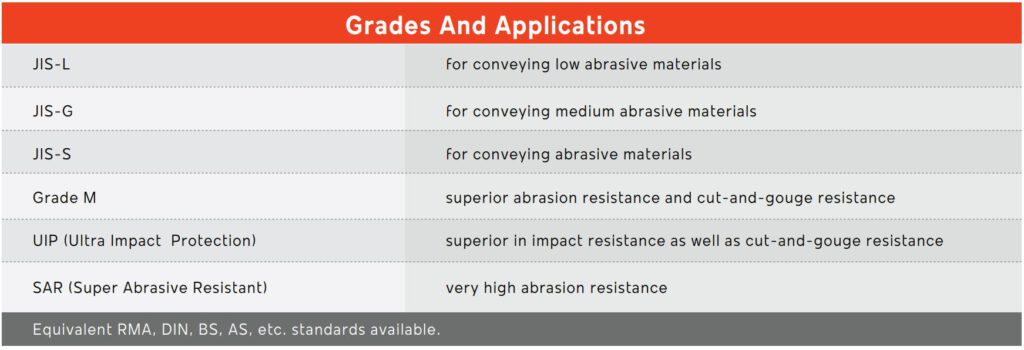

General Cover Rubber (Wear Resistant)

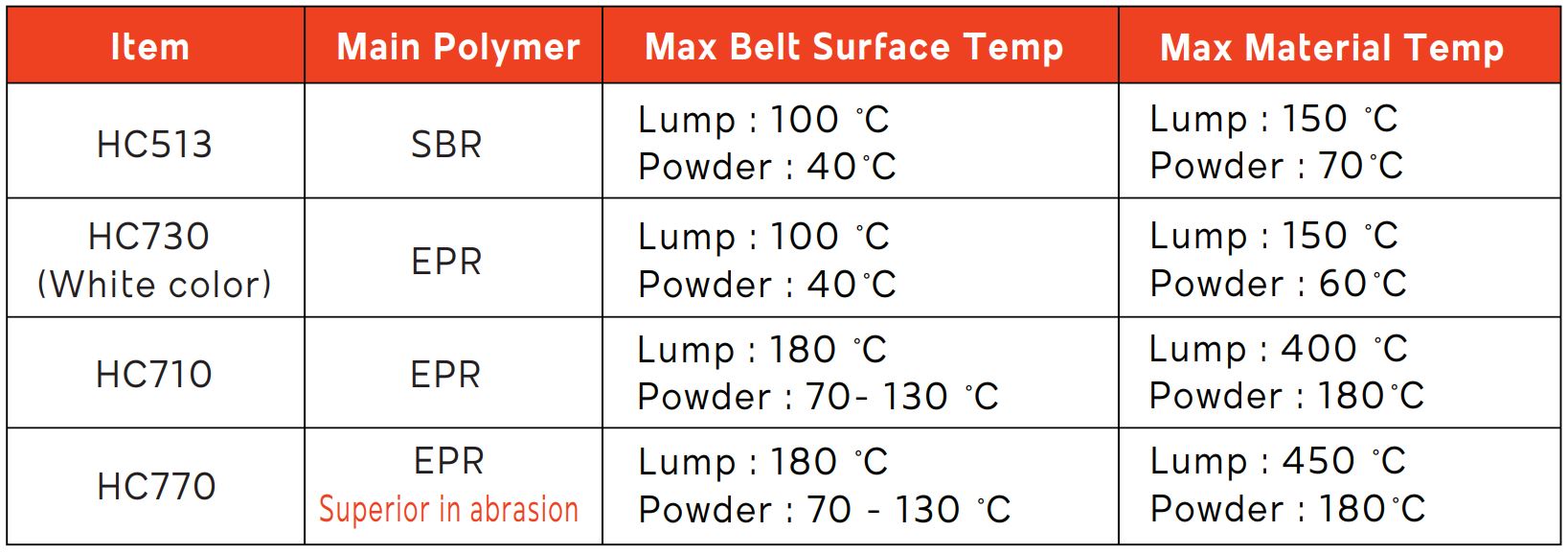

Bando Heat Carry Line up (Heat Resistant)
