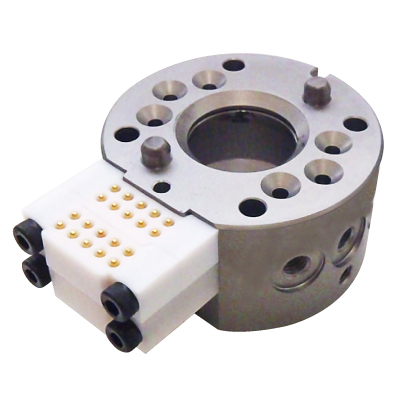

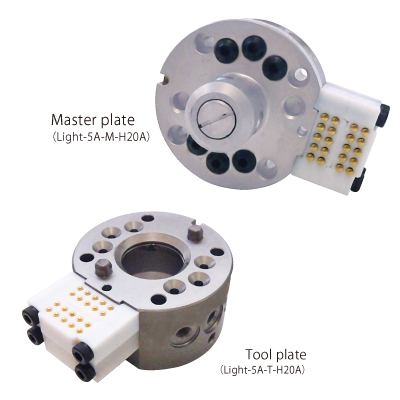

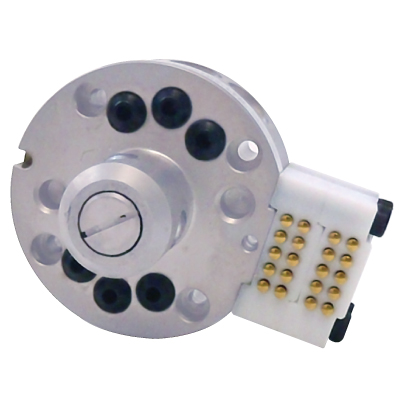

The BL QUICK-CHANGE Model Light-5A is a device for automatic tool changing, specially designed for low payload capacity robots, generally used in the assembly and handling of electrical parts, precision equipment and mechanical parts. During the unlocking process, the Light-5A Master plate pushes the Tool plate off (self-separating function). An optional shaft receptacle adaptor is available with the Light-5A to attach it to a shaft-type robot.。

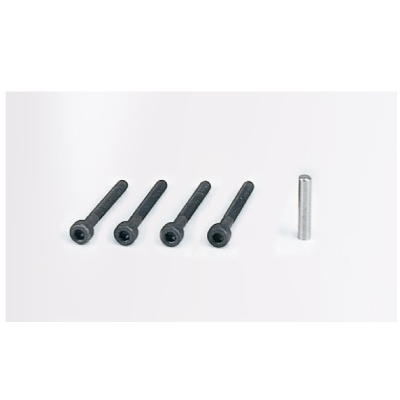

Master plate Attachments
・4 bolts（M3×20）
・1 locating pin
Features of Light-5A
The Light-5A locking mechanism has been designed to push the Tool plate off during the unlocking process, providing reliable separation.
The Master plate can lock onto the Tool plate with a gap between them.
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

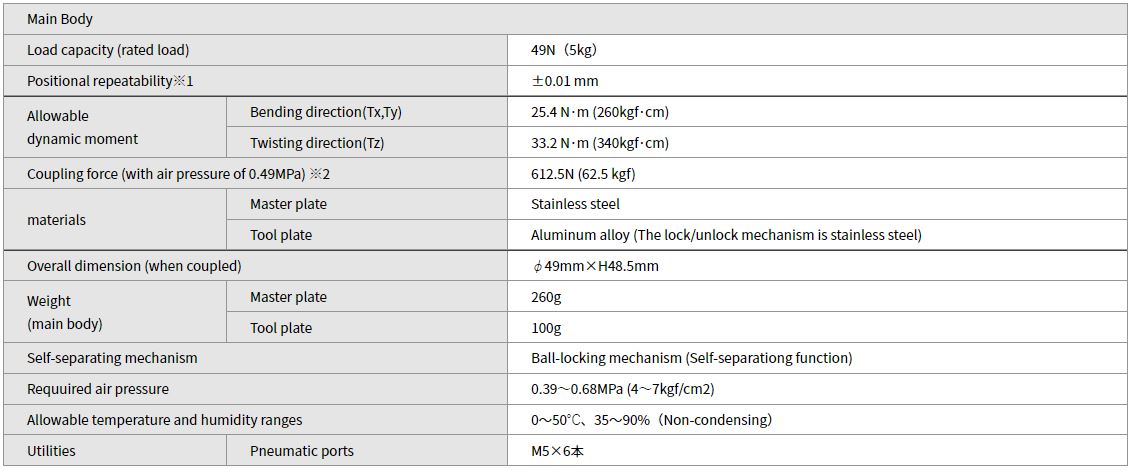

Specifications
Ordering Information

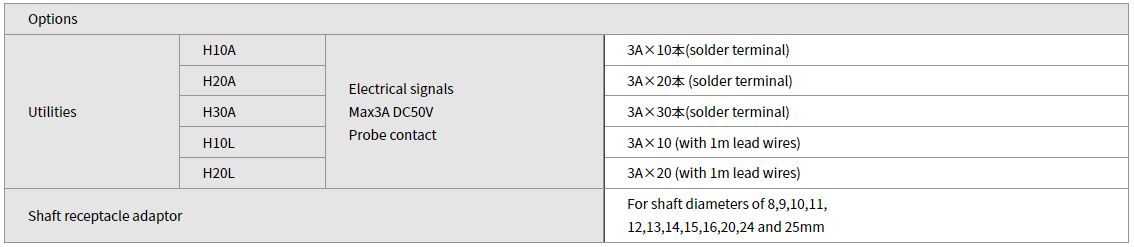

Option
Load capacity：5kg(49N)Light-5A-M(T)-H10A
Load capacity：5kg(49N)Light-5A-M(T)-H20A
Load capacity：5kg(49N)Light-5A-M(T)-H10L
Load capacity：5kg(49N)Light-5A-M(T)-H20L
Load capacity：5kg(49N)Light-5A-M(T)-H30A
Load capacity：5kg(49N)Light-5A-M(T)-SA
