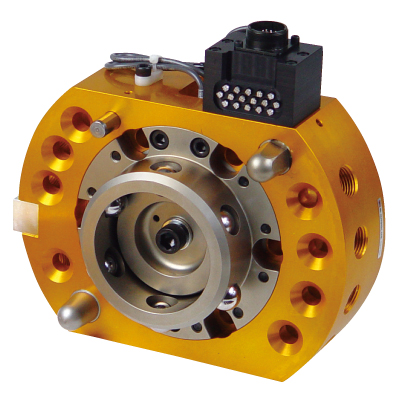

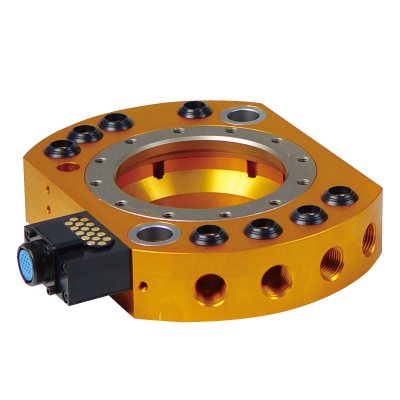

The BL QUICK-CHANGE Model QCP-220 is an automatic end-effector changer used in press handling and loading applications, with a payload capacity of 200kg for large panels and high-speed robots. It can be directly installed on a PCD125 mm robot flange.

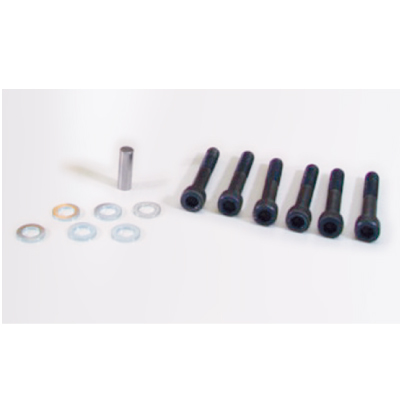

Master plate Attachments
・6 bolts（M10×65）
・6 plain washers
・1 locating pin
Features of QCP-220
Pneumatic ports (Rc1/2) can be used for vacuum pressure and electrical signals can be used for ID confirmation.
Due to built-in design, QCP-220 is 12.4% thinner than QC-150C with the lock/unlock sensor.
Due to built-in design, QCP-220 is 12.4% thinner than QC-150C with the lock/unlock sensor.
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

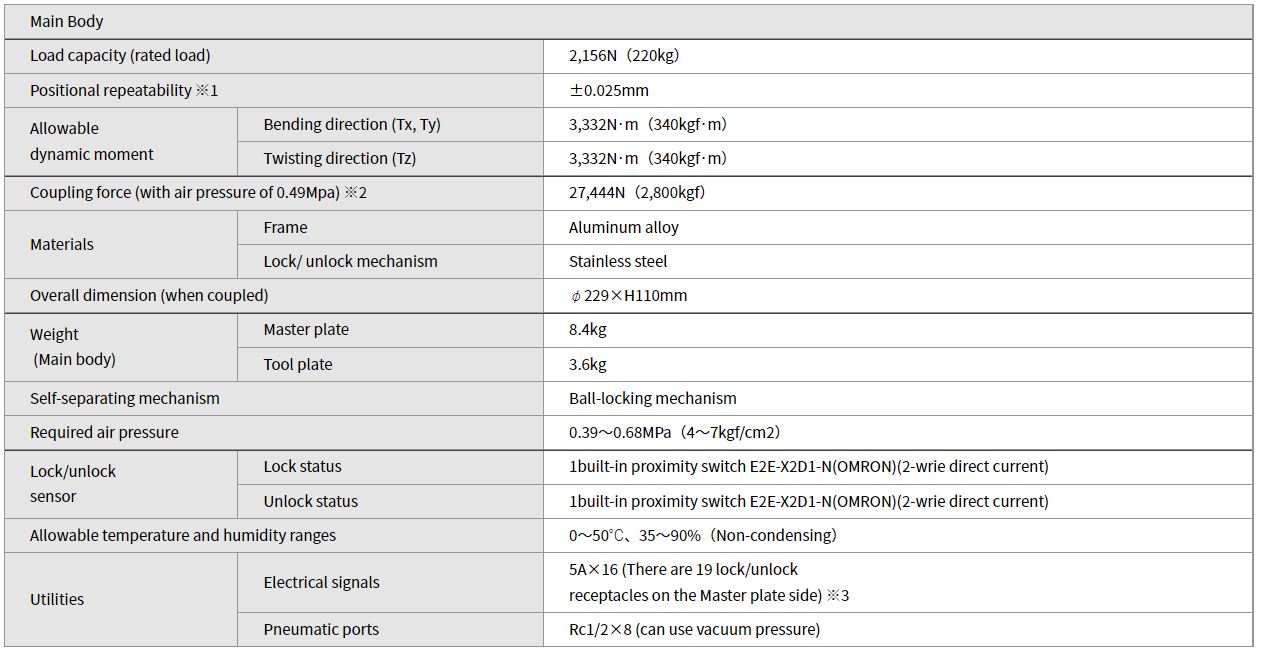

Specifications

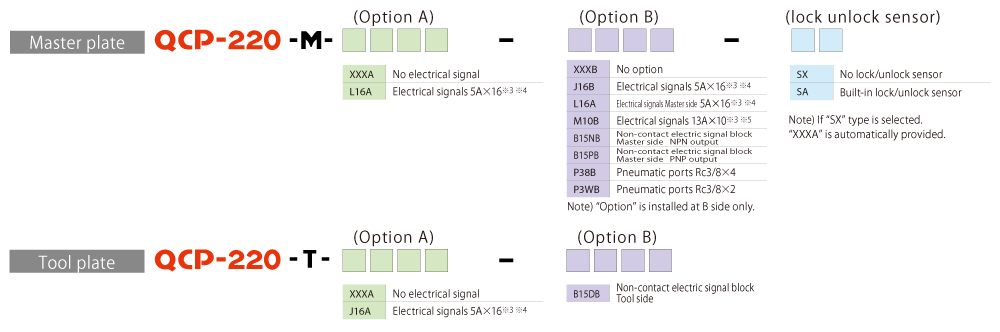

Ordering Information

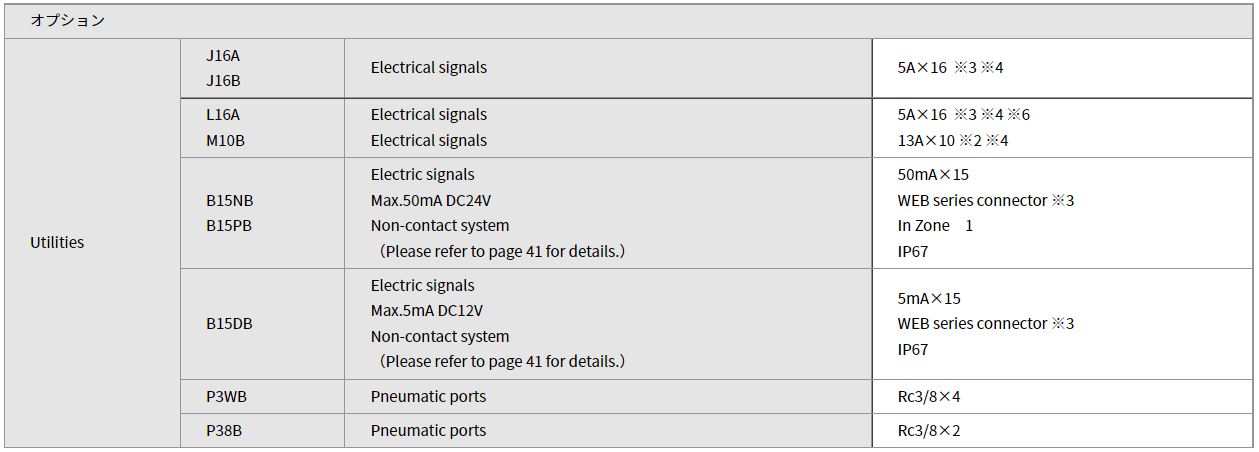

Option
Load capacity：220kg(2,156N)L16A(Master side only)

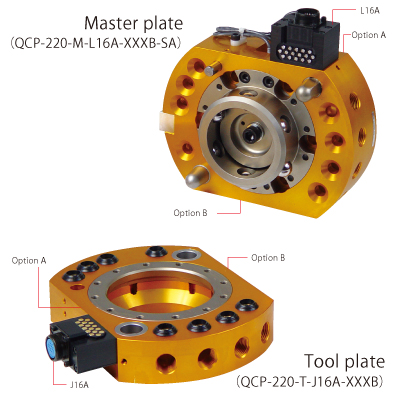

Optional parts can be equippedJ16A(Tool side only)
Load capacity：220kg(2,156N)QCP-M(T)-J16B
Load capacity：220kg(2,156N)QCP-220-M(T)-M10B
Load capacity：220kg(2,156N)L16A-M
Load capacity：220kg(2,156N)QCP-220-M(T)-P3WB
Load capacity：220kg(2,156N)QCP-220-M(T)-P38B
