M-SERIES
No. of Plies | Weight (Kg/m2) | Total Thickness (mm) | Minimum pulley diameter (mm) Knife edge | Belt support | Top friction coefficient | Backside Friction coefficient | Unpackaged food | Non-Fray | incline | Low Sticky | Ultraantistatic | Antibacterial Antifungal | Applicable operating temperature (C) | Maximum applicable width (mm) | Previous product, remarks | ||||||||||
Finger | Hot lap | Cold lap | Table | Roller | Trough | Dry heat | Wet heat | ||||||||||||||||||
2 | 1.1 | 1.1 | - | 40 | 45 | 〇 | 〇 | △ | 0.05 | 0.10 | - | - | - | - | 〇 | - | -10 ~ 80 | -10 ~ 50 | 800 | 8PSE SS |
〇:Suitable (functional)
△:May be suitable. Please contact Bando or your distributor.
×:Not suitable
-:Not functional
Hot joint is recommended. Delicate fabric material is used, and unprocessed belt edge and cold joint may result in unstable joint strength.

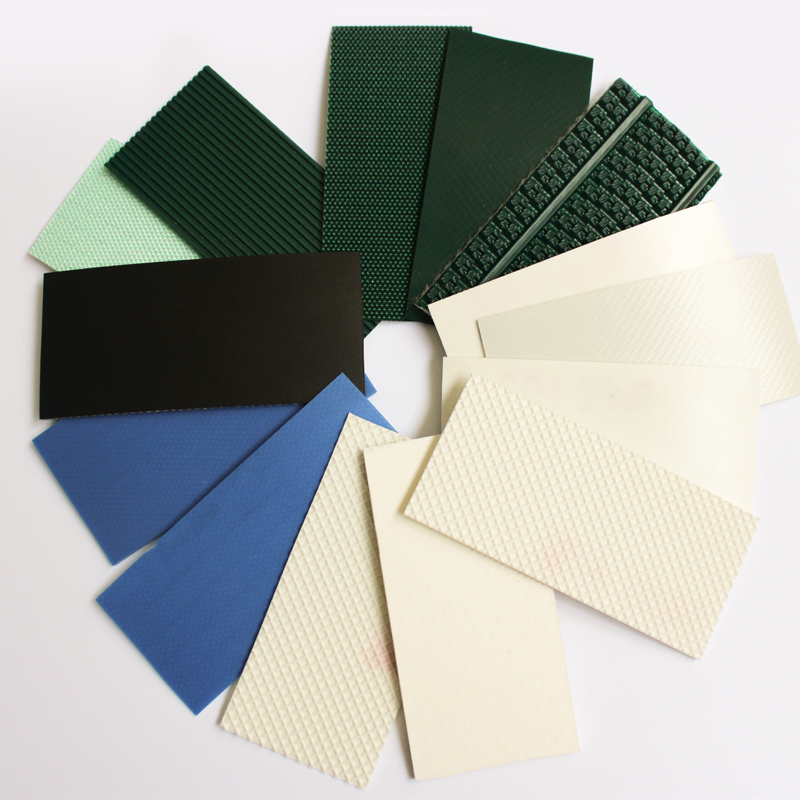

M Series Belts for Logistics and General Conveyance Applications
Joining Methods
SUNLINE Belts can be joined using hot or cold jointing methods. Joint types include finger, overlap, lace (fastener), but most common are finger or overlap.
Skiver joints are also possible. Please contact Bando or your distributor.
V-Guide Processing
V-guides can be used to prevent snaking. They can also be used to prevent products from falling off a conveyor by attaching them to the top of the belt, as V-guides are longitudinally Flexible.
Features
