Description
BANCOLLAN V-BELT
The Bancollan V-Belt is highly evaluated by users as an optimum belt for light-duty equipment. Recently it is widely used even in general industry and is called a standard V-belt in the light-duty field.
(1) Structure and Features

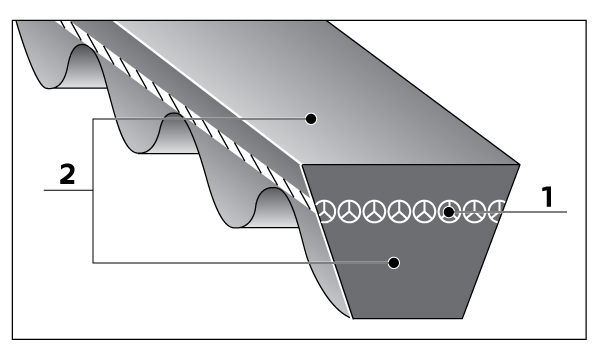

VC (cogged on the inner surface)

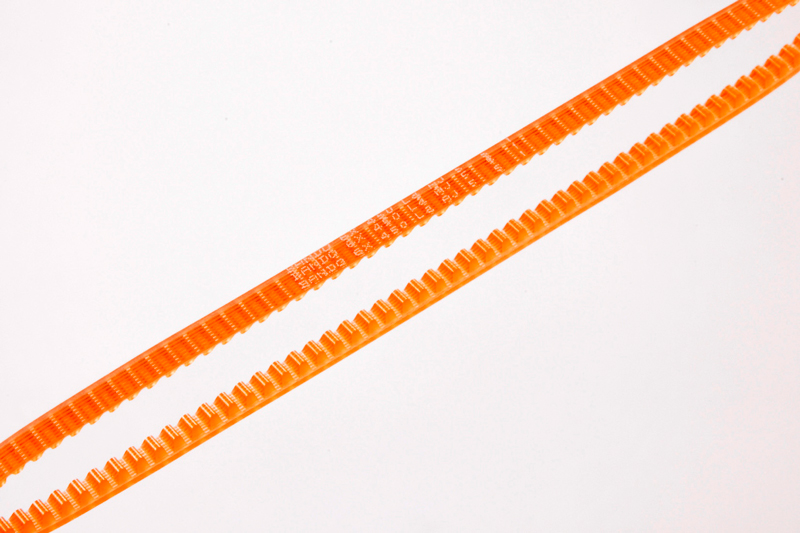

DC (cogged on both sides)
1. Cord (Polyester cord)
2. Tension rubber/Base rubber (polyurethane rubber)
The Bancollan V-Belt provides the following features.
■ Economical power transmission
Because it has a large friction factor and uses flexible polyurethane, it has little transmission loss and consumes less power.
■ Compact design
The cog effect and the highly flexible polyurethane provide fine fitting with pulleys, allowing use in a small space.
■ Clean power transmission
As it uses polyurethane, which has excellent abrasion resistance, it is rarely abraded, making it most suitable for use in a transmission system that should avoid dirt.
■ Re-tensioning unnecessary
As it uses polyester cords that have high strength, elongate little, and have little flex fatigue, the belt elongates little due to running and rarely requires re-tensioning

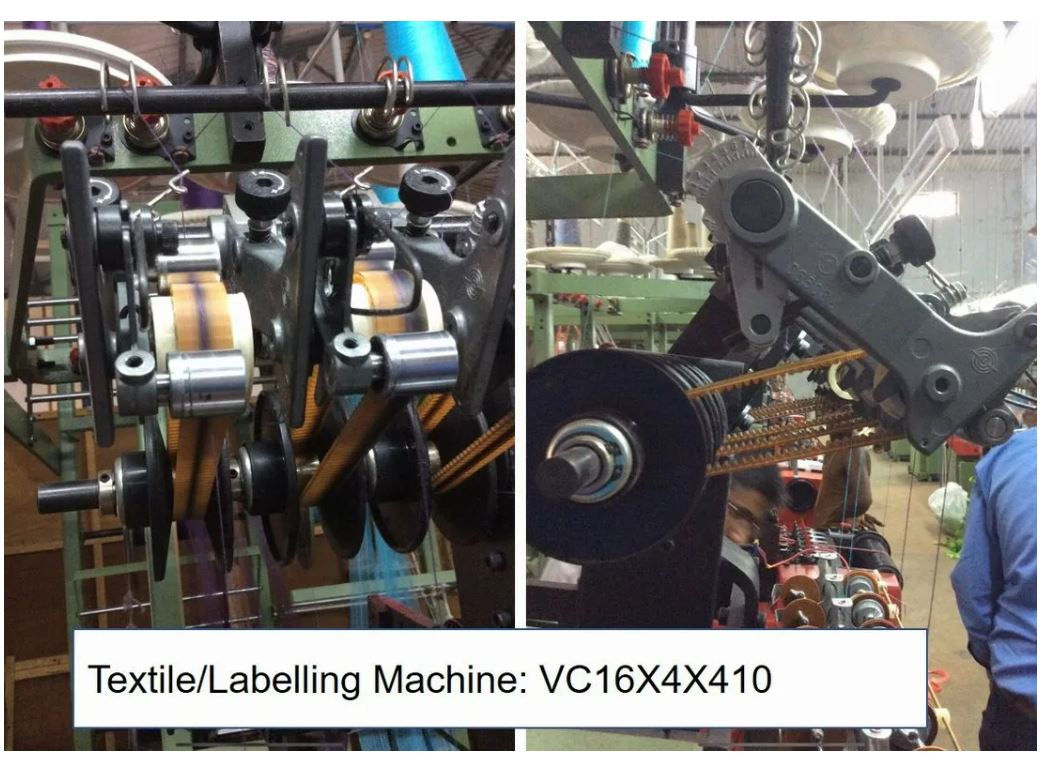

(2) Major Applications
Household electric equipment
Sewing machines, pencil sharpeners, vacuum cleaners, dish-washing machines
Office machinery, optical machines
Typewriters, terminal devices, Blowers for computers, projectors
Compact machine tools, electric tools
Lathes, drill presses, grinders, electric planes
Labor-saving equipment
Automatic packaging machines, vending machines, automatic doors, bill and coin calculators, automatic shoe polishers, ticket vending machines
Chemical equipment
Stirring machines, sizing machines, winding machines, centrifugal separators
Others
Massage machines, radio-controlled gadgets (vehicles, helicopters), conveyance equipment (coins, cards)
(3) Belt Dimensions
- Cross-sectional dimensions
The same dimensions for the VC type and the DC type.
- Belt size indication example
The VC type has a size indication on the back face of the belt; however, the DC type does not have the indication.
(4) Pulley Groove Dimensions
As pulleys for the Bancollan V-Belt, please use pulleys with the following dimensions.

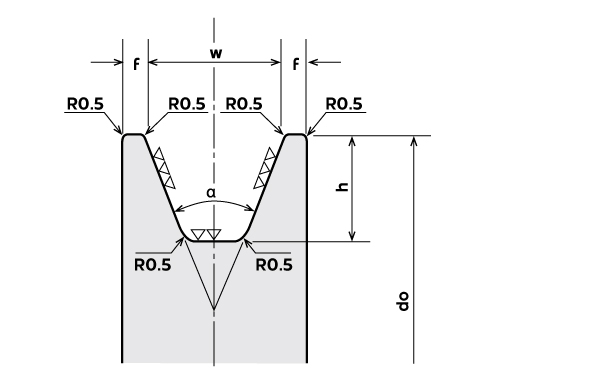

Groove dimensions
(Unit) mm
For pulleys for special applications and other belt types than the above, please contact us.
Dimensional Tolerance
