Description
Features of GC-300A
- Unidirectional cable and hose
The power and control cables and the pneumatic hose are oriented in a single direction.
-
The primary current module contains a floating mechanism
The primary current module is equipped with a self-cleaning function and a floating mechanism.
- Self-sealing coolant ports
The check valves of the circulating coolant ports are equipped with a PTFE sleeve to prevent liquid spillage.
- Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

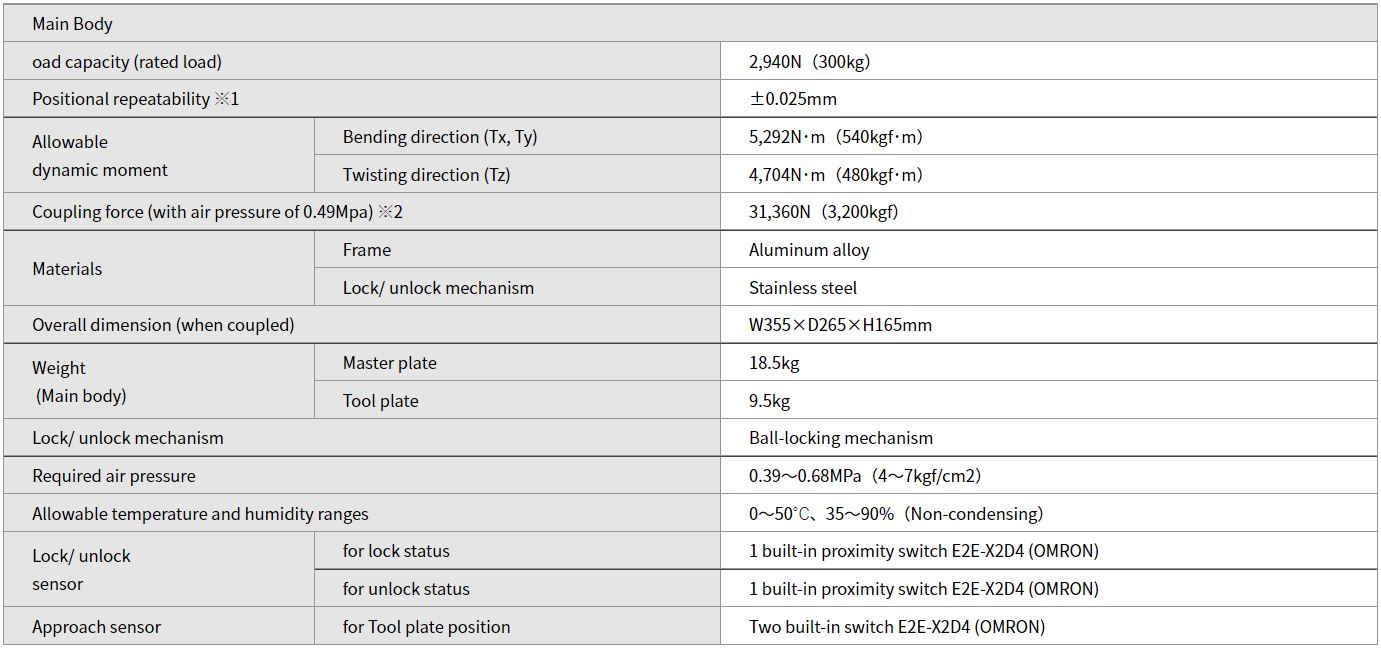

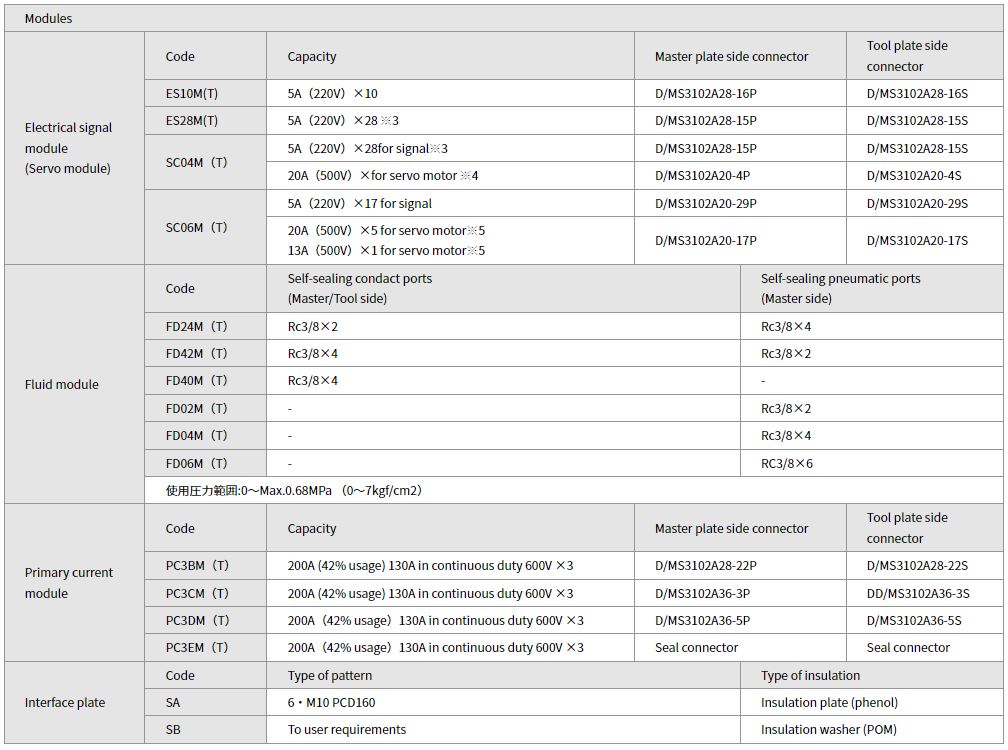

Specifications

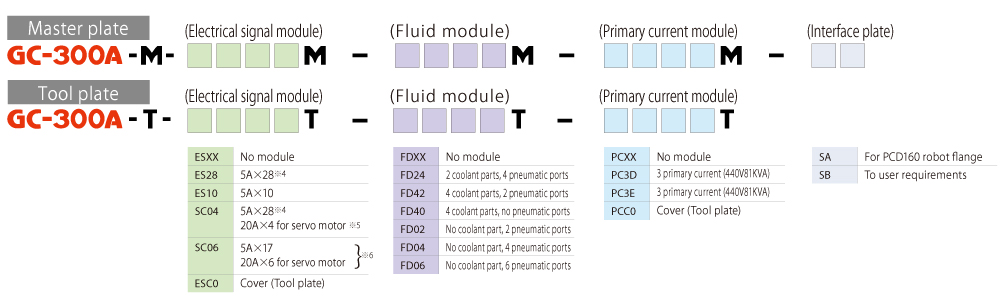

Ordering Information
Option
Electric signal module ( Servo module)
- Load capacity：300kg(2,940N)GC-300-M(T)-SC04M,SC06M
Primary current module
- Load capacity：300kg(2,940N)GC-300A0M(T)-PC3DM,PC3DT
- Load capacity：300kg(2,940N)GC-300-M(T)-PC3EM
- Optional parts can be equipped GC-300-M(T)-PC3ET
