Description
Features of USP-100A
-
Slimline design
BL’s unique lock/unlock mechanism was newly designed to this specification, with a thickness of only 50mm when coupled, so it can handle narrow press openings.
-
Built-in position confirmation sensor
The built-in position confirmation sensor is equipped with a proximity switch.
-
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master plate and Tool plate to uncouple if the air pressure is shut off.

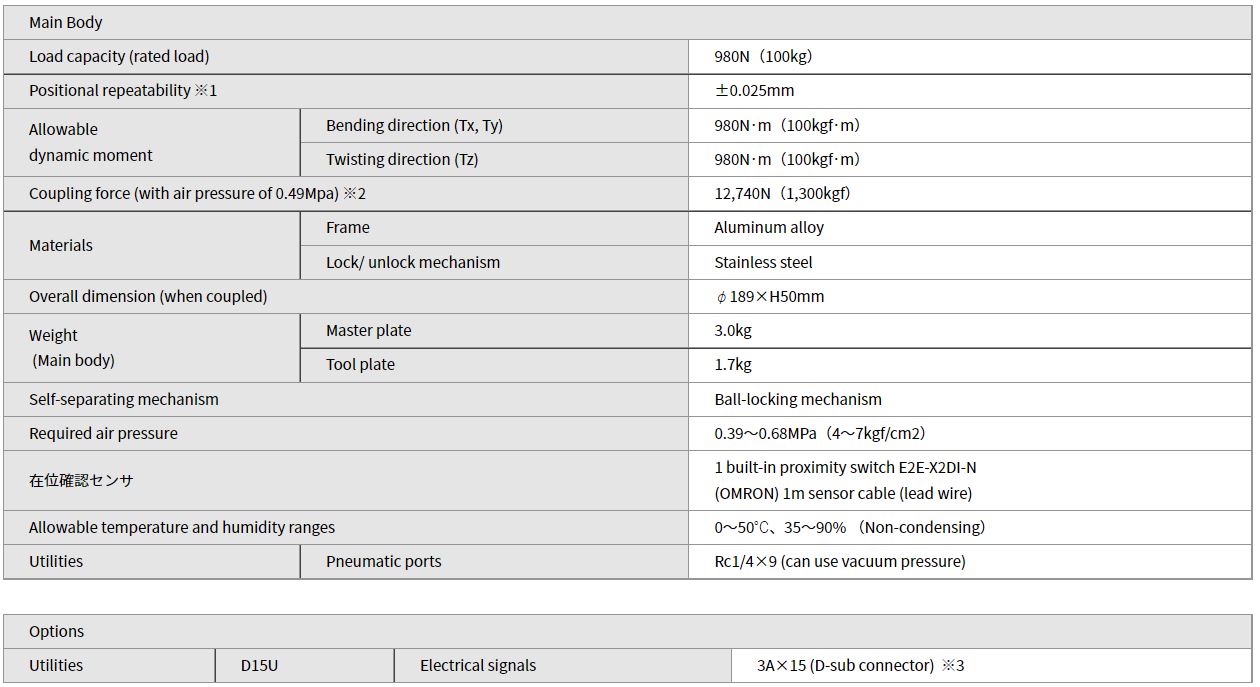

Specifications

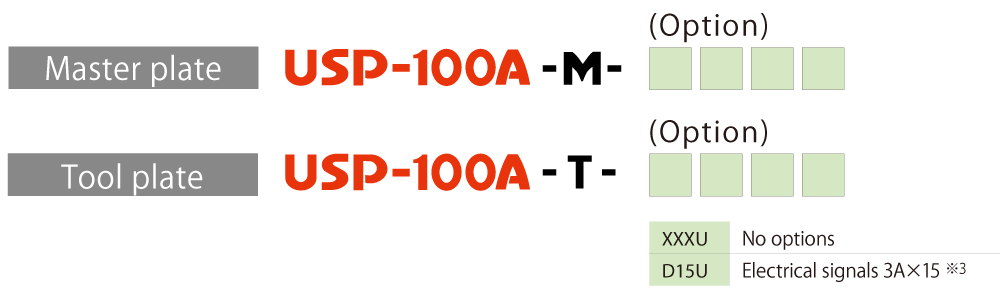

Ordering Information
Option
Electrical signal contact block
- Load capacity：100kg(980N)USP-100A-M(T)-D15U
