Description
Features of QC-150C
-
Lock without touching

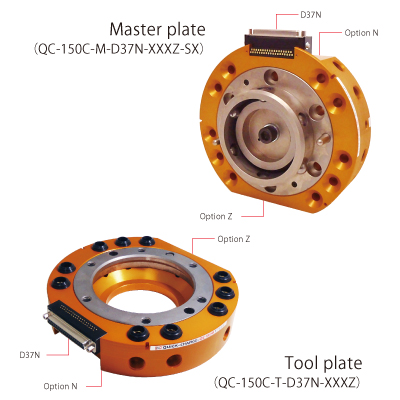

The Master plate can lock onto the Tool plate with a gap between them.
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple
if the air pressure is shut off.

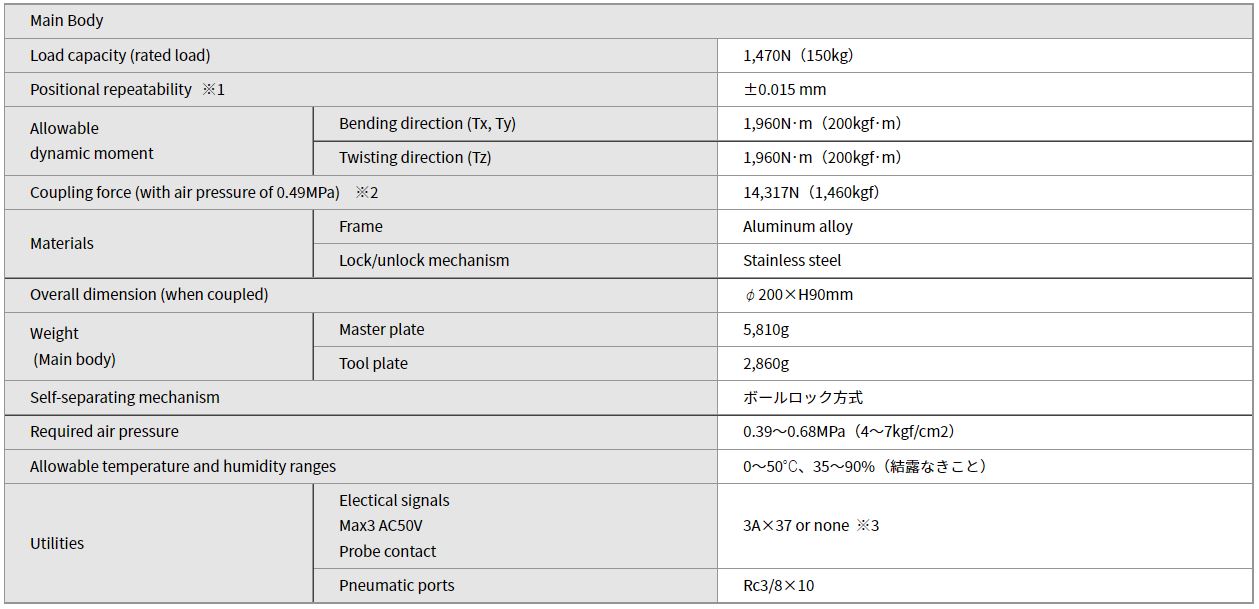

Specifications

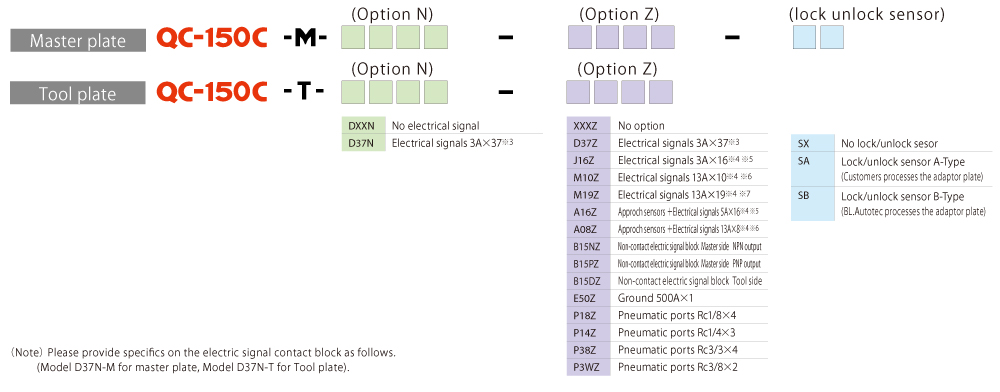

Ordering Information

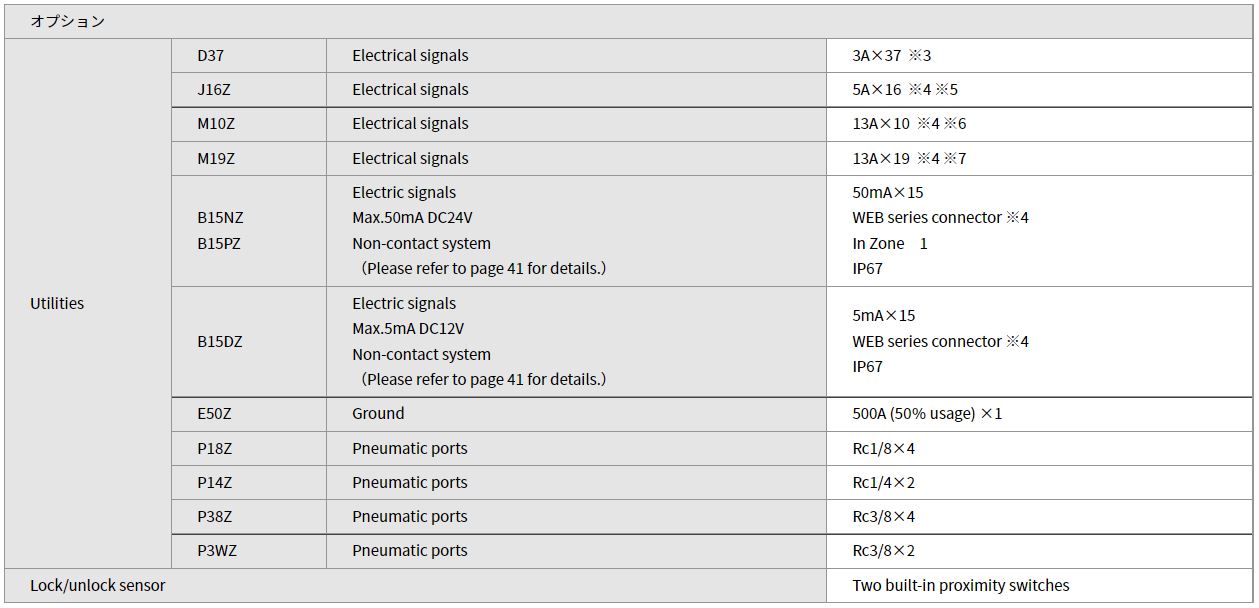

Option
- Electrical signal contact block
Load capacity：150kg(1,470N)QC-150C-M(T)-D37Z
Load capacity：150kg(1,470N)QC-150C-M(T)-J16Z
Load capacity：150kg(1,470N)QC-150C-M(T)-M10Z
Load capacity：150kg(1,470N)QC-150C-M(T)-M19Z
Load capacity：150kg(1,470N)QC-150C-M(T)-A16Z
- Load capacity：150kg(1,470N)QC-150C-M(T)-A08Z
- Non-contact electric signal block
Load capacity：150kg(1,470N)QC-150C-B15NZ,B15PZ,B15DZ
- Pneumatic ports
Load capacity：150kg(1,470N)QC-150C-M(T)-P18Z
Load capacity：150kg(1,470N)QC-150C-M(T)-P14Z
Load capacity：150kg(1,470N)QC-150C-M(T)-P38Z
Load capacity：150kg(1,470N)QC-150C-M(T)-P3WZ
