Description

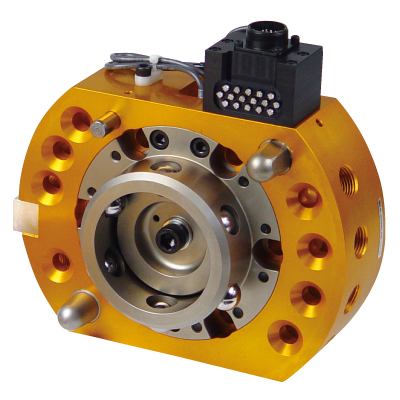

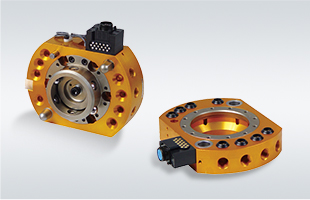

Features of QCP-220
-
Utilities specifically for press applications
Pneumatic ports (Rc1/2) can be used for vacuum pressure and electrical signals can be used for ID confirmation.
-
Built-in lock/unlock sensor
Due to built-in design, QCP-220 is 12.4% thinner than QC-150C with the lock/unlock sensor.
-
Faster lock/unlock operation
Due to built-in design, QCP-220 is 12.4% thinner than QC-150C with the lock/unlock sensor.
-
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

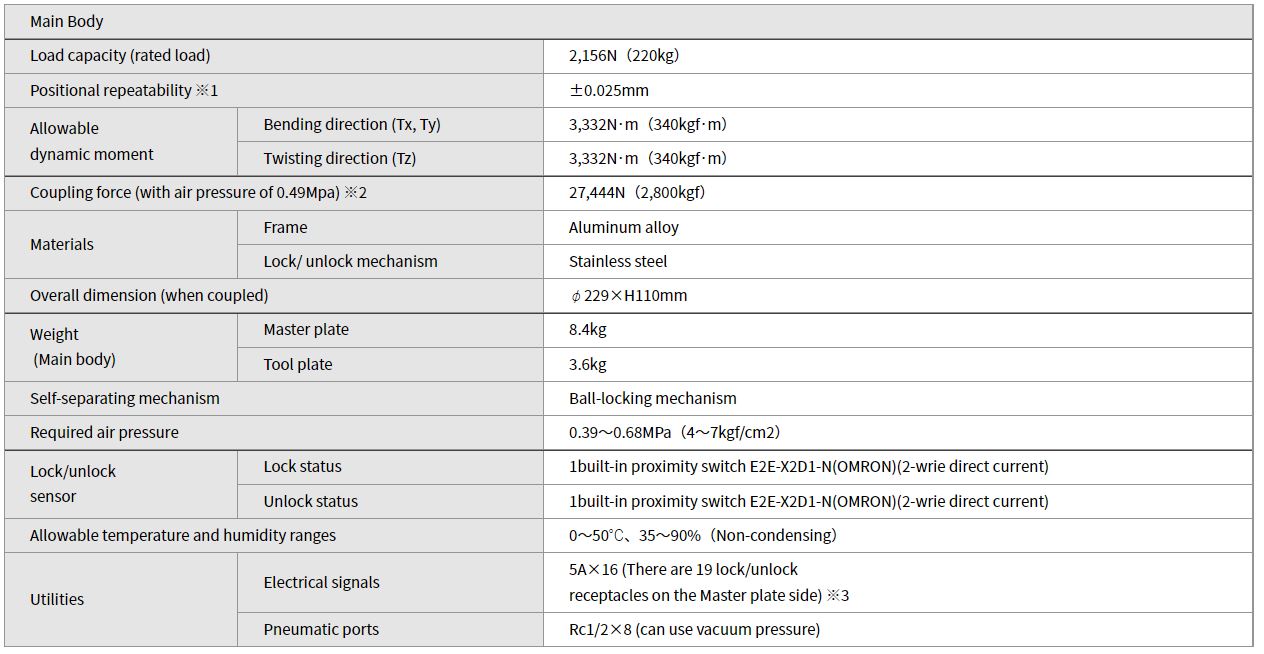

Specifications

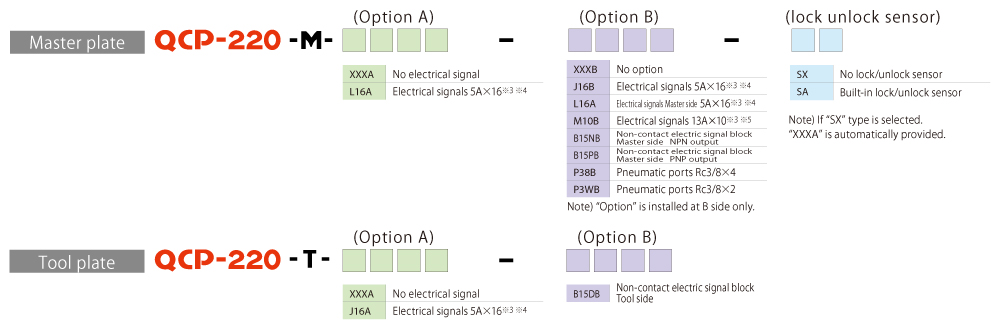

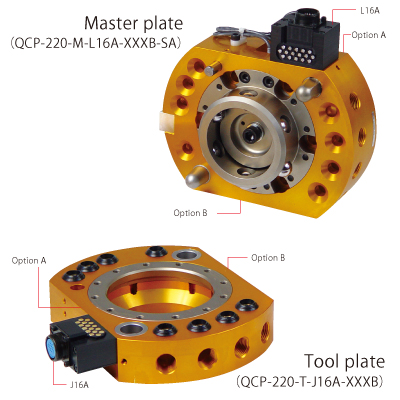

Ordering Information

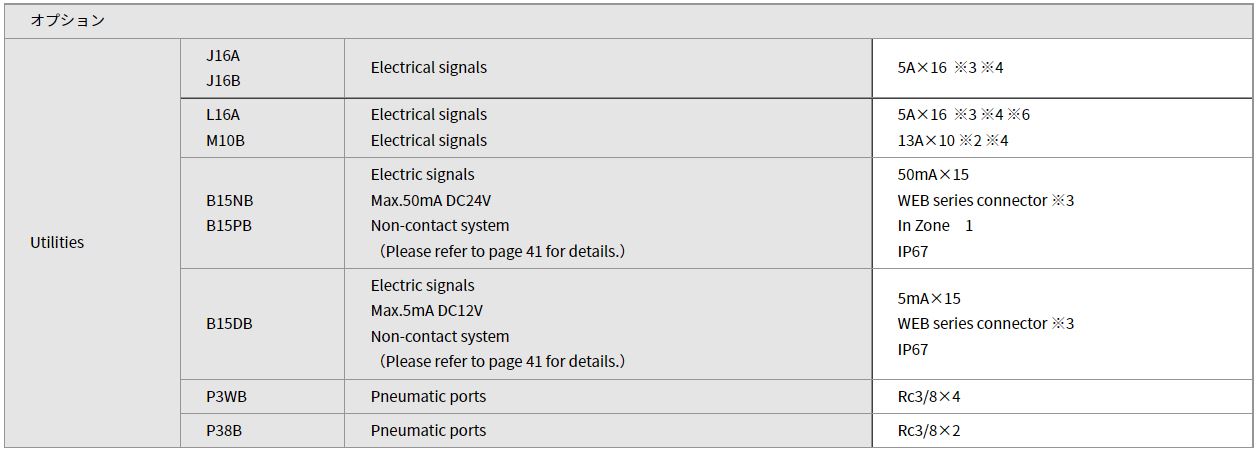

Option
- Electrical signal contact block
Load capacity：220kg(2,156N)L16A(Master side only)
Optional parts can be equippedJ16A(Tool side only)
Load capacity：220kg(2,156N)QCP-M(T)-J16B
Load capacity：220kg(2,156N)QCP-220-M(T)-M10B
Load capacity：220kg(2,156N)L16A-M
- Non-contact electric signal block
- Pneumatic ports
Load capacity：220kg(2,156N)QCP-220-M(T)-P3WB
Load capacity：220kg(2,156N)QCP-220-M(T)-P38B
