Description

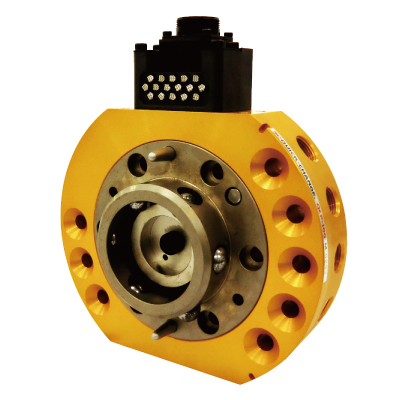

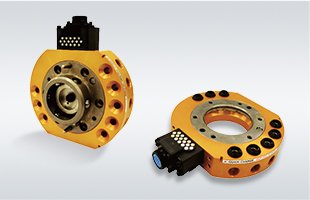

Features of QCP-100A
-

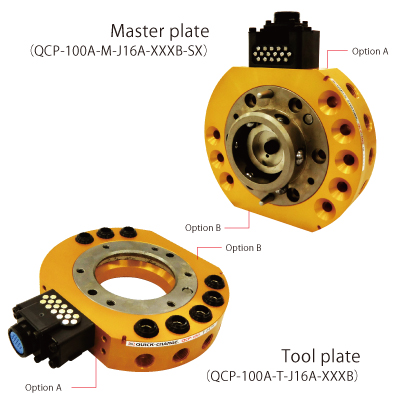

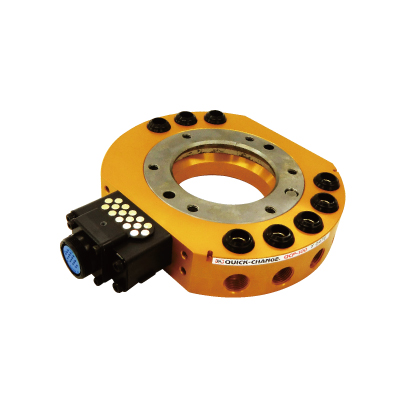

Body designed specially for press applications
Both sides of the Tool plate are cut, which allows it to be placed in an upright position, requiring less space for hand installation.
-
Utilities specially considered for press applications
Eight pneumatic vacuum ports are included on standard equipment, and the QCP-100 can be optionally equipped with up to 16 ports. The Tool plate has an optional electrical signal block contact without a connector (R16A/B). Directly-soldered hard-wiring makes a plug unnecessary, so it cannot be damaged when hands are exchanged. It is easy to assign ID discrimination in the hard-wiring section, and the block itself is protected by a metal cover.
-
Capability to assign power signals to the lock/unlock sensor
from the electrical signal contact block
Two types of power signals may be assigned to the lock/unlock sensor (optional) from the electrical signal contact block.
-
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master plate and Tool plate to uncouple if the air pressure is shut off.

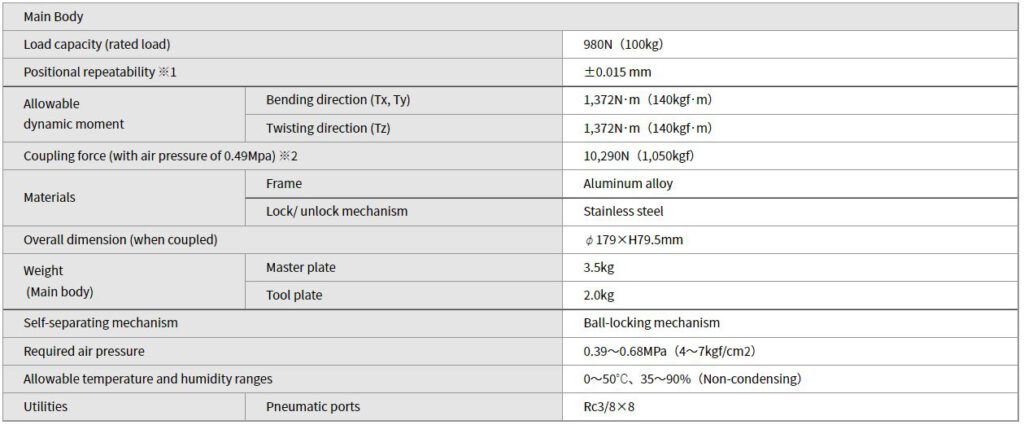

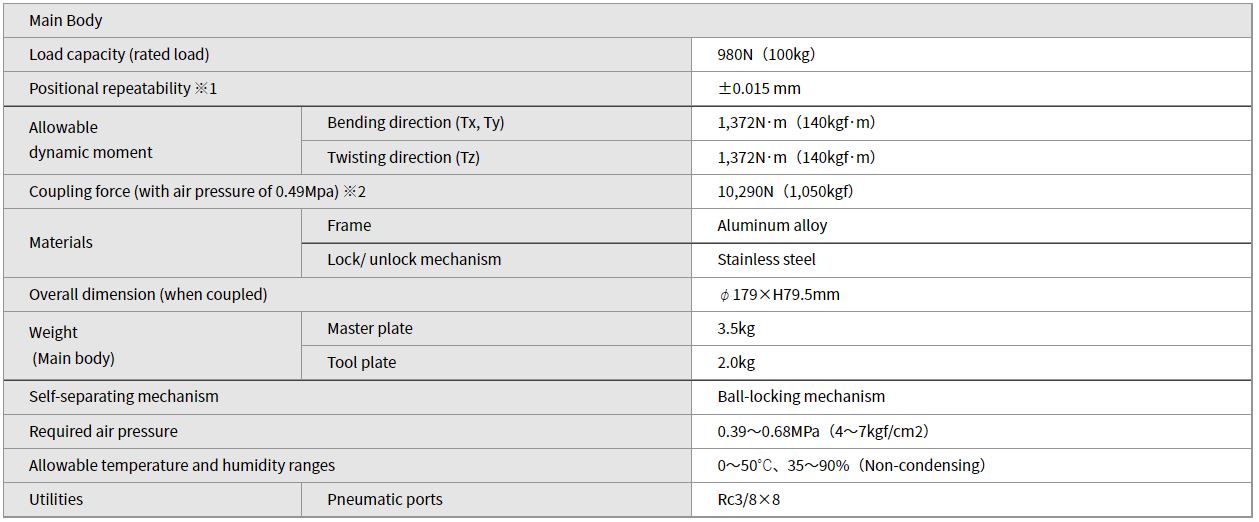

Specifications

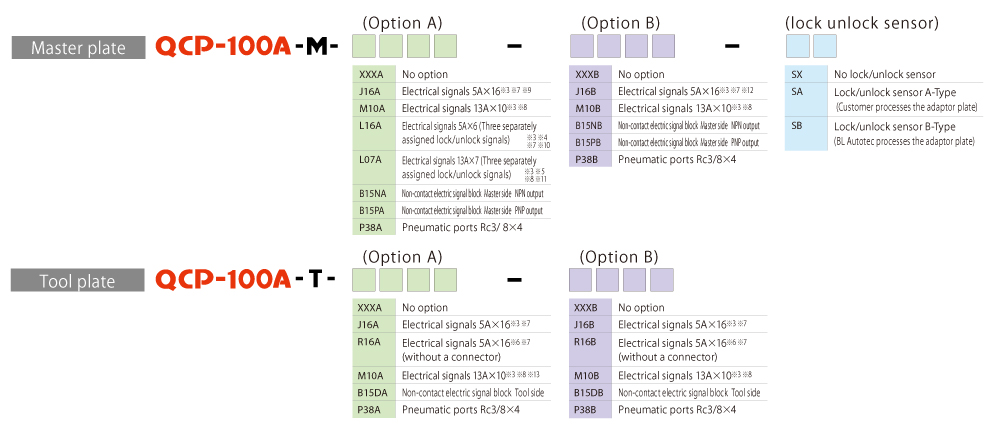

Ordering Information

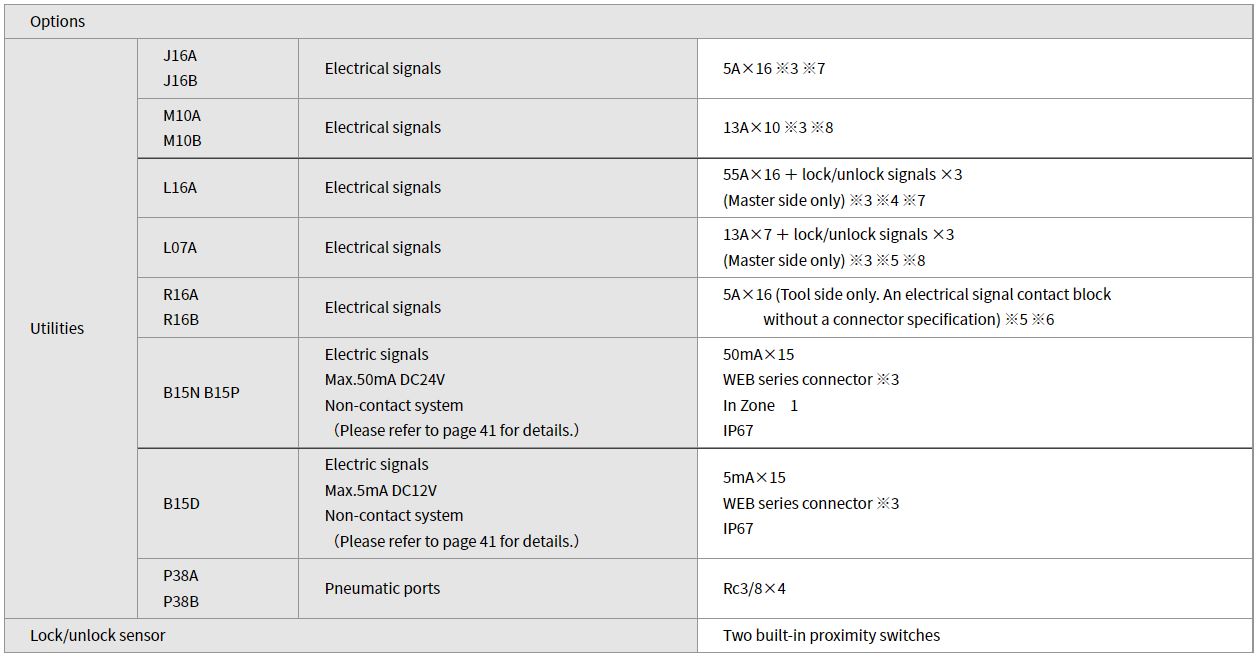

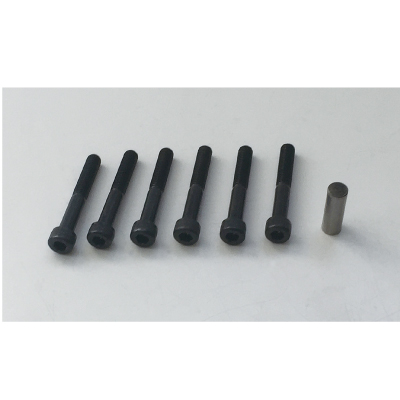

Option

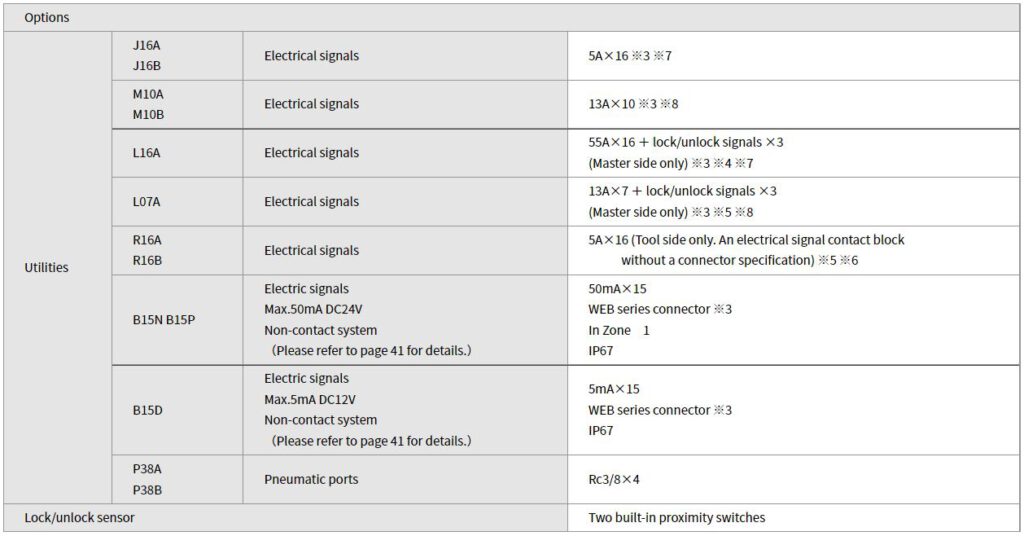

- Electrical signal contact block
Load capacity：100kg(980N)QCP-100A-M(T)-J16A,J16B
Load capacity：100kg(980N)QCP-!A-M(T)-M10A,M10B,L07A
Load capacity：100kg(980N)QCP-100A-M(T)-R16A,R16B
- Non-contact electric signal block
Load capacity：100kg(980N)QCP-100A-M(T)-B15NA_B,B15PA
- Pneumatic ports
Load capacity：100kg(980N)QCP-100A-M(T)-P38A,P38B
- Lock/unlock sensor
Load capacity：100kg(980N)QCP-100A-M(T)-SA,SB
