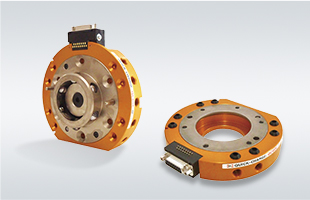

QUICK-CHANGE QC-60D

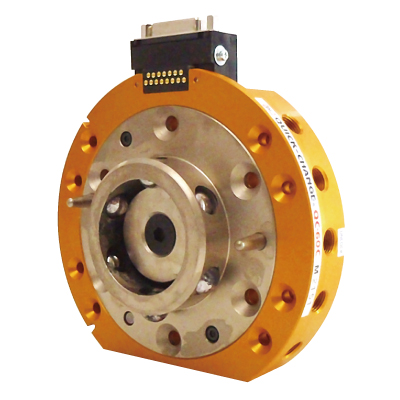

Master plate Attachments

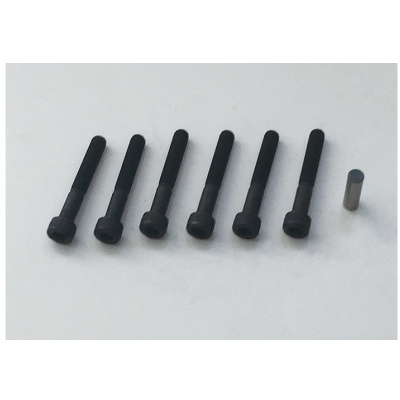

・6 bolts（M6×40)
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

Request more information

Catalog download

Description

Features of QC-60D



  • Lock without touching

The Master plate can lock onto the Tool plate with a gap between them.

  • Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

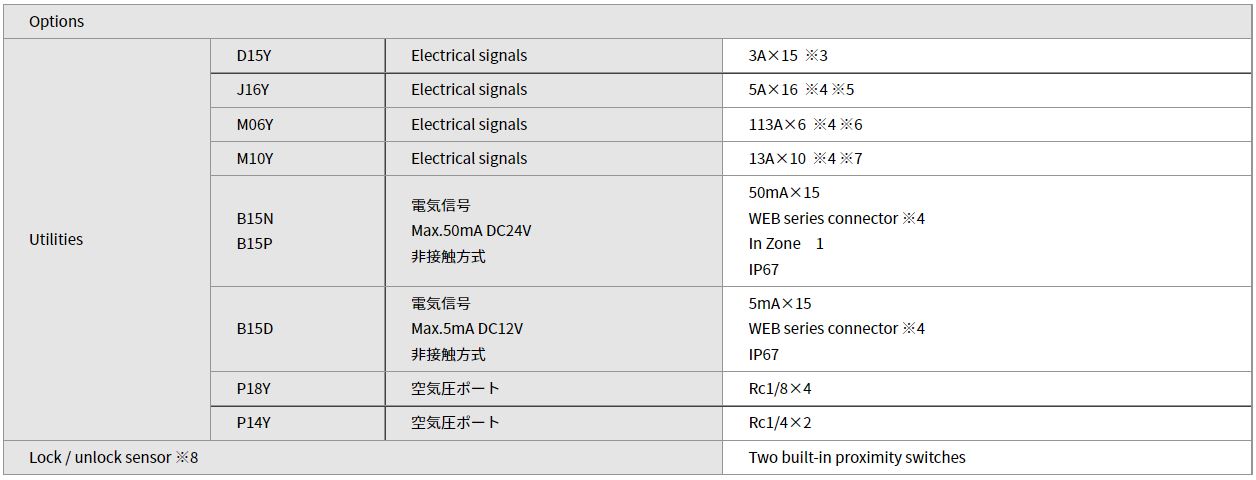

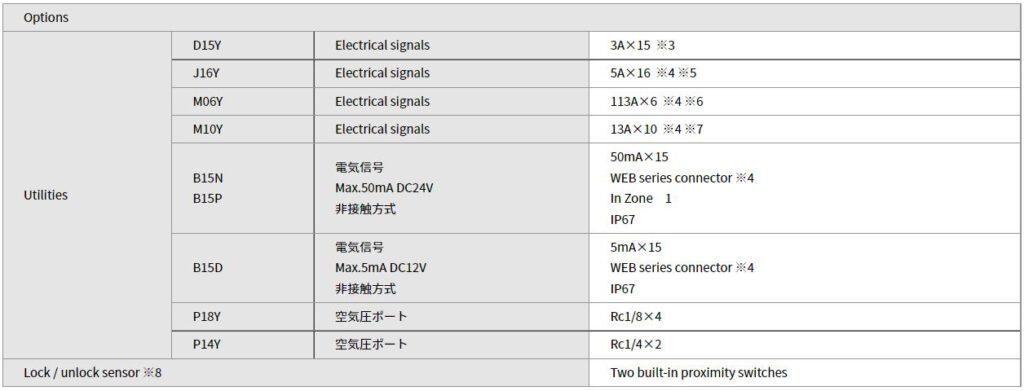

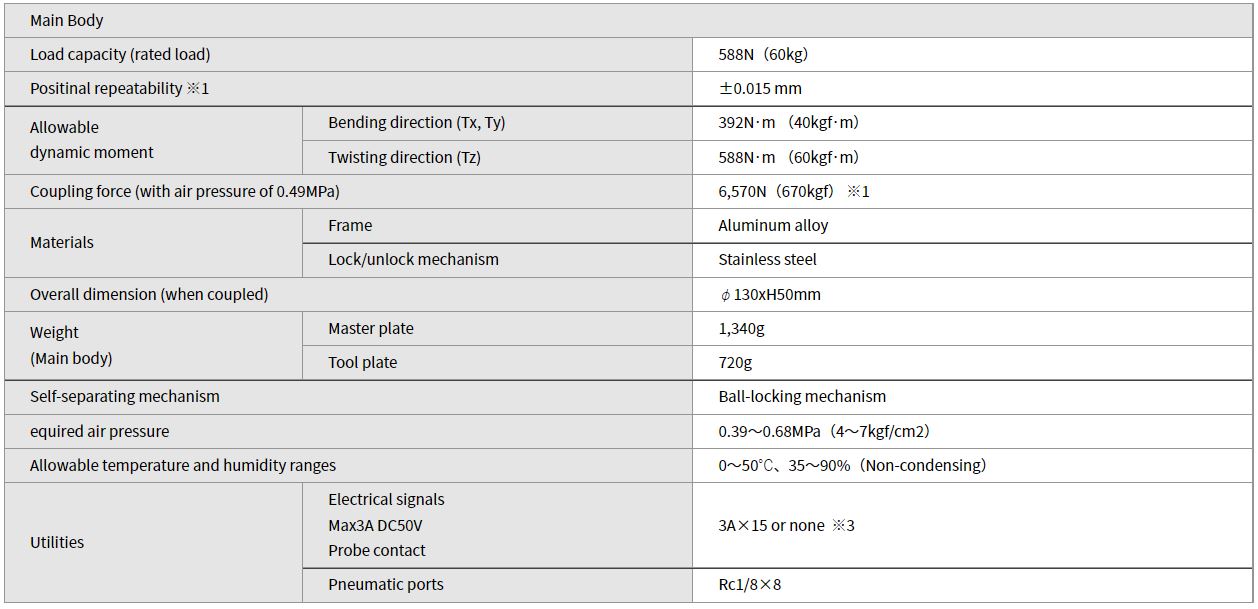

Specifications

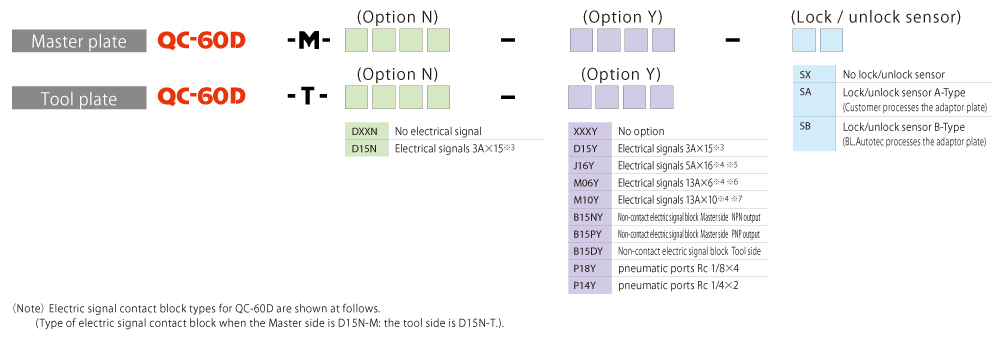

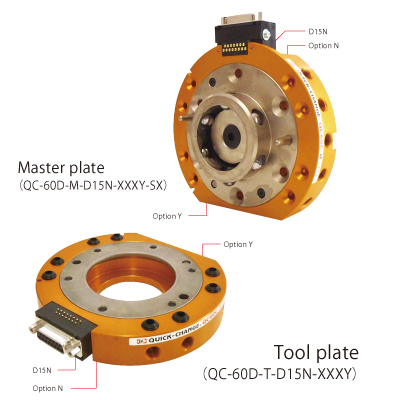

Ordering Information

Option

  • Electrical signal contact block

Load capacity：60kg(588N)QC-60D-M(T)-D15Y

Load capacity：60kg(588N)QC-60D-M(T)-J16Y

Load capacity：60kg(588N)QC-60D-M(T)-M06Y

Load capacity：60kg(588N)QC-60D-M(T)-M10Y



  • Non-contact electric signal block

Load capacity：60kg(588N)QC-60D-M(T)-B15NY,B15PY(Master side only),B15DY(Master side only)

  • Pneumatic ports

Load capacity：60kg(588N)QC-60D-M(T)-P18Y

Load capacity：60kg(588N)QC-60D-M(T)-P14Y



  • Lock/unlock sensor

Load capacity：60kg(588N)QC-60D-M(T)-SA,SB



Related products

  • QUICK-CHANGE FLEX-100B

    The BL QUICK-CHANGE Model Flex-100B is a device for quick and accurate automatic changing of multiple end-effectors, such as material handling, palletizing and deburring. Pneumatic blocks and electrical connector blocks can be selected for the Flex-100B.

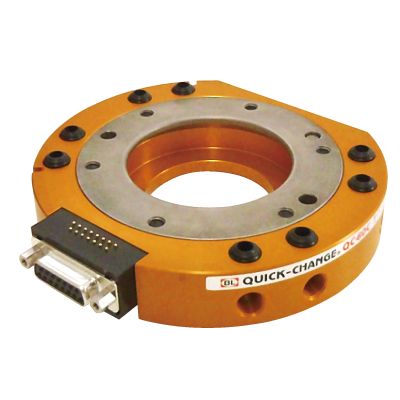

    Master plate Attachments
    ・6 bolts（M8×55）
    ・Stepped parallel pin×1
    ※Seal plate, O-ring and screws are pre-assembled.

    Request more information

    Catalog download

    Read more

  • QUICK-CHANGE LIGHT-5A

    The BL QUICK-CHANGE Model Light-5A is a device for automatic tool changing, specially designed for low payload capacity robots, generally used in the assembly and handling of electrical parts, precision equipment and mechanical parts. During the unlocking process, the Light-5A Master plate pushes the Tool plate off (self-separating function). An optional shaft receptacle adaptor is available with the Light-5A to attach it to a shaft-type robot.。

    Master plate Attachments
    ・4 bolts（M3×20）
    ・1 locating pin

    Request more information

    Catalog download

    Read more

  • QUICK-CHANGE FLEX-40B

    The BL QUICK-CHANGE Model Flex-40B is a device for automatic tool changing, designed to enable robots and automated equipment to automatically change end-effectors or other peripheral tooling. A ball-locking mechanism allows for high coupling force and increased moment. To meet your specific application requirements, such as material handling, assembly and deburring, you may select various options in pneumatic ports and electrical contacts, including motor-driving ampere capacity.

    Master plate Attachments

    ・6 bolts（M5×35)
    ・1 locating pin
    ※Seal plate, O-ring and screws are pre-assembled.

    Request more information

    Catalog download

    Read more
