| Type | Top Width (a) | Thickness (b) | Angle |
| SB | 12.7 mm (0.5”) | 7.0 mm (0.27”) | 40 ํ |
| Material | |
| Cord | |
| Temperature range |

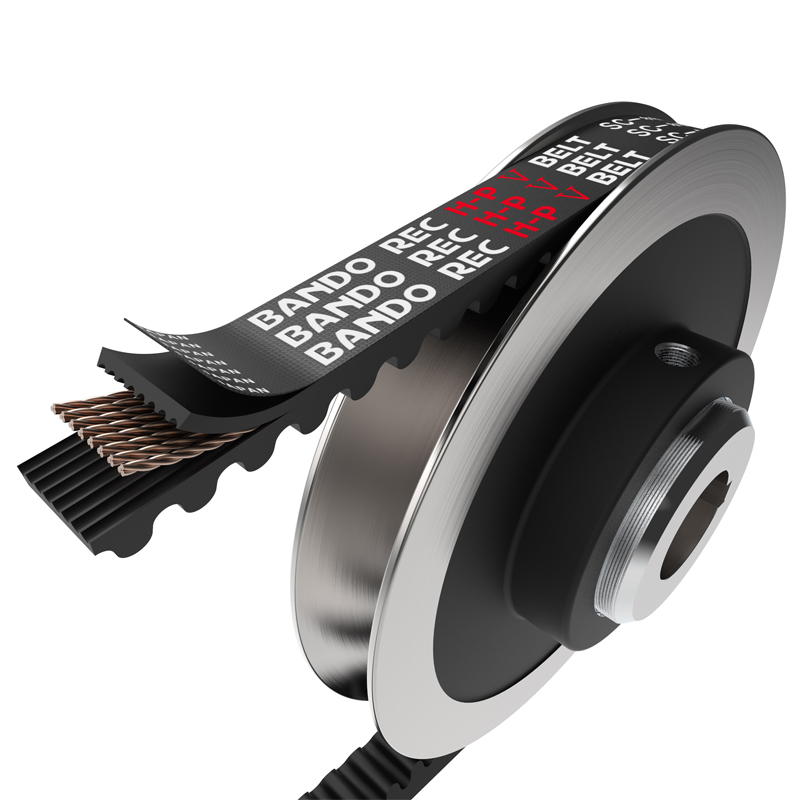

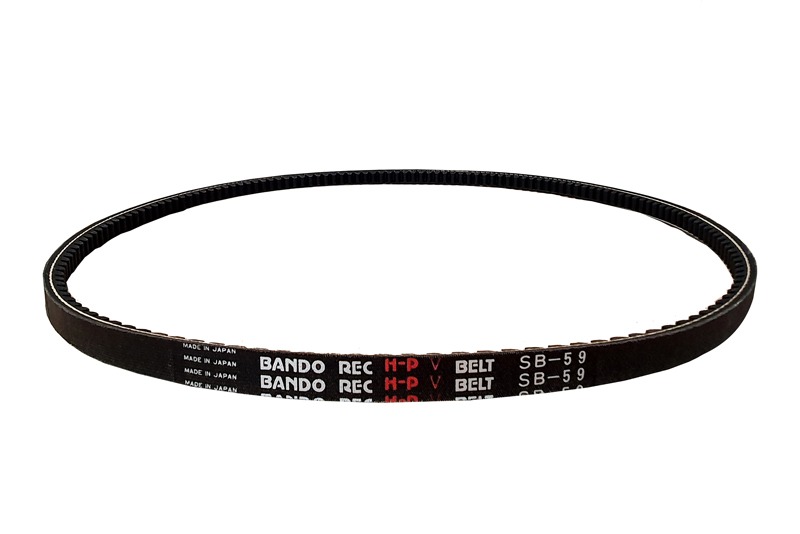

BANDO REC H-P V
แบนโด ไฮท์พาวเวอร์ ไฟว์
คุณสมบัติของสายพาน

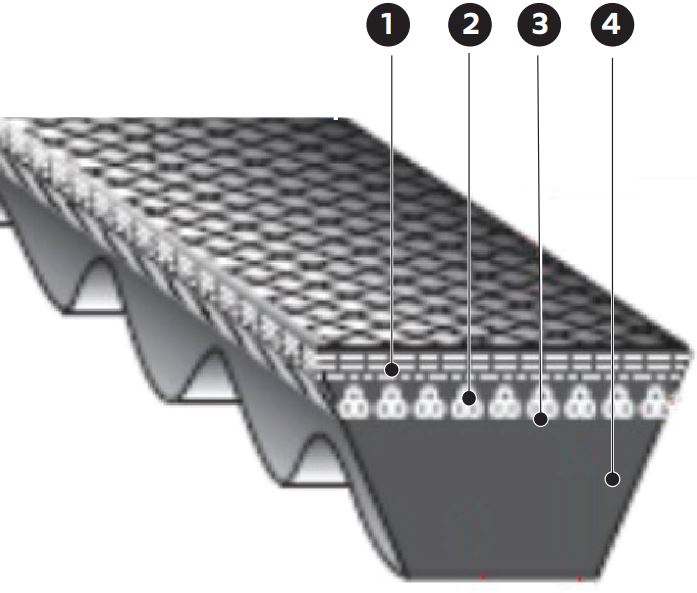

โครงสร้างของสายพาน
1.ผ้าใบชนิดพิเศษฉาบด้วยยางชนิดพิเศษ
2.เส้นด้ายรับแรงชนิดพิเศษ
3.ยางกาวชนิดพิเศษ
4.ยางรองรับแรงอัดชนิดพิเศษ
ร่องและขนาดของสายพาน

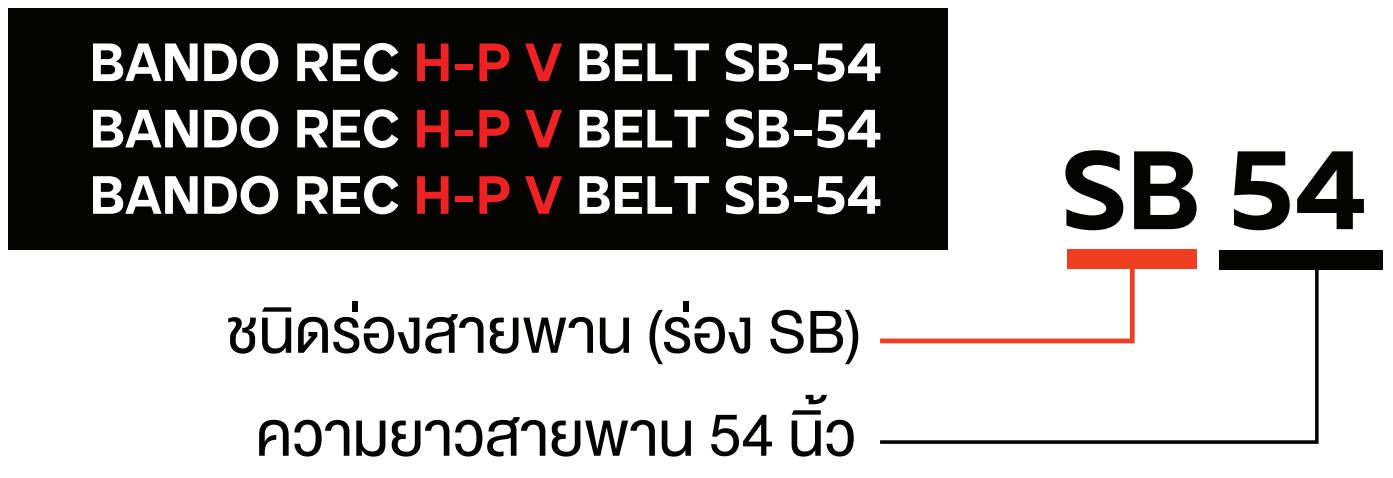

วิธีการอ่านสายพาน
As it can be simply and strongly joined by heating, a belt with a required effective length can be obtained in an in stant. As the effective length can be freely selected regard less of standards, it allows for a design that makes most of the performance of the machine.
It can be installed without disassembling the machine and requires little management, such as troublesome tension adjustment.
As the cross section has no direction, the belt allows multi-shaft transmission and three-dimensional complex transmission such as direction changes by idler pulleys.
As it uses Bancollan (polyurethane), which has excellent abrasion resistance and tear resistance, it provides excellent performance as a belt as well as an industrial material.
| Type | Top Width (a) | Thickness (b) | Pulley Groove Angle ∝ | Size Range |
| VA | 16~32 mm | 8.5 mm | 22~38 | Please download catalog |
| VB | 20~38 mm | 10 mm | 22~38 | |
| VC | 24~45 mm | 11.5 mm | 22~38 | |
| VD | 30~54 mm | 13.5 mm | 22~38 | |
| VE | 37~67 mm | 16 mm | 22~38 |
| Material | Rubber |
| Cord | Polyester |
| Temperature range | – 30 – 90 ํC |
| Type | Top Width (a) | Thickness (b) | Angle |
| SA | 12.7 mm (0.5”) | 7.0 mm (0.27”) | 40 ํ |
| SB | 16.7 mm (0.67”) | 9.0 mm (0.35”) | 40 ํ |
| SC | 22.2 mm (0.87”) | 11.0 mm (0.43”) | 40 ํ |
| Material | |
| Cord | |
| Temperature range |
