STS PULLEYS

Plain bore type ・Shafts machined to suit the shaft diameter ・Abundance of sizes Bushing type ・Use of taper lock (TL) system bushing ・Easy to install and remove from the shaft ・JIS keys available for standard shaft diameter ranges

Request more information

Catalog download

Description

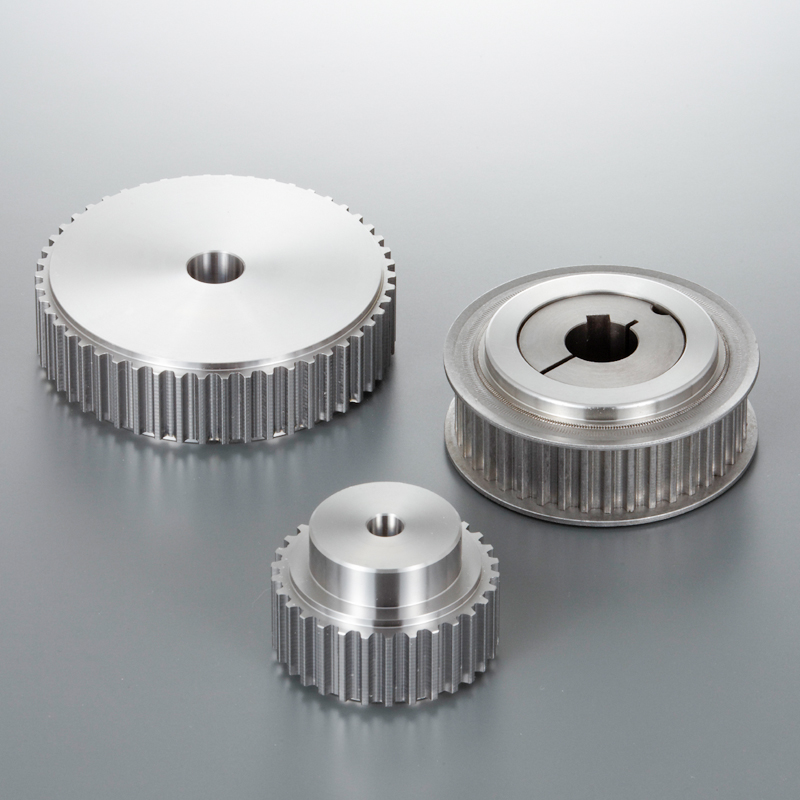

STS PULLEYS

Machine-cut, precision STS pulleys

FEATURES

Plain bore type

・Shafts machined to suit the shaft diameter
・Abundance of sizes

Bushing type

・Use of taper lock (TL) system bushing
・Easy to install and remove from the shaft
・JIS keys available for standard shaft diameter ranges

APPLICATIONS
Suitable for STS Belt drive applications
Ideal for pulley replacement in locations with limited or restricted access

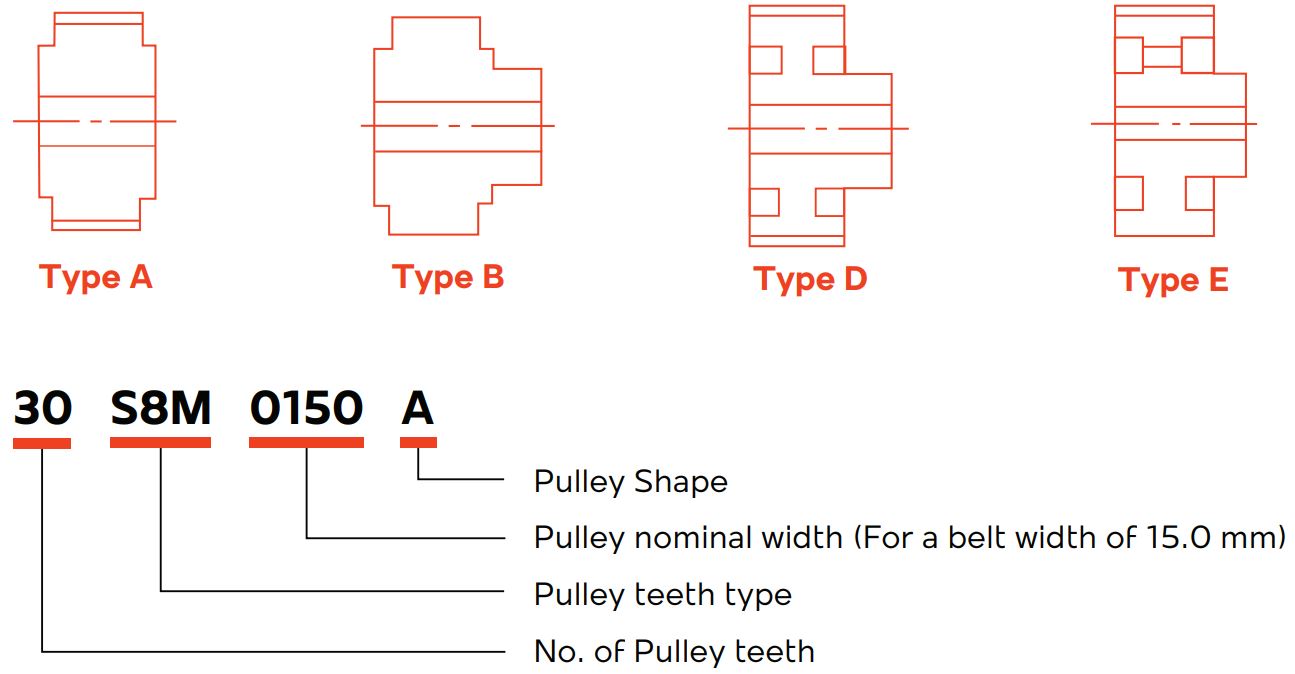

Machined shaft hole type (STS Pulley)
