Description

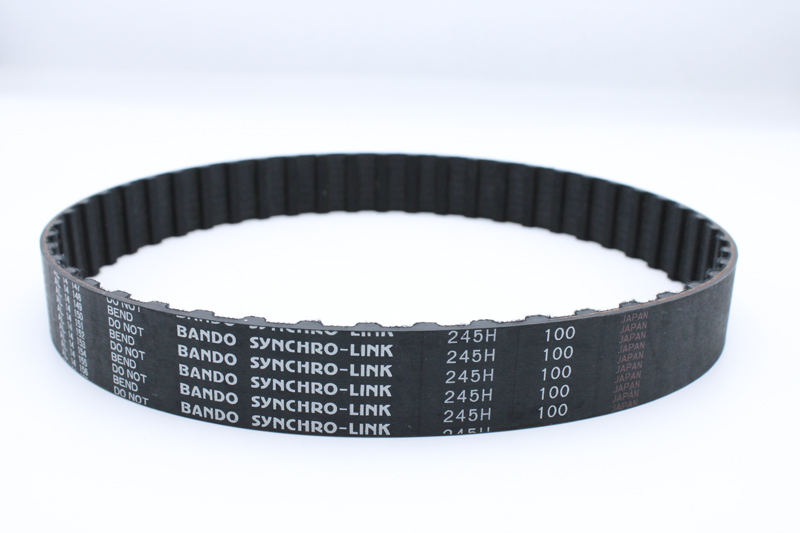

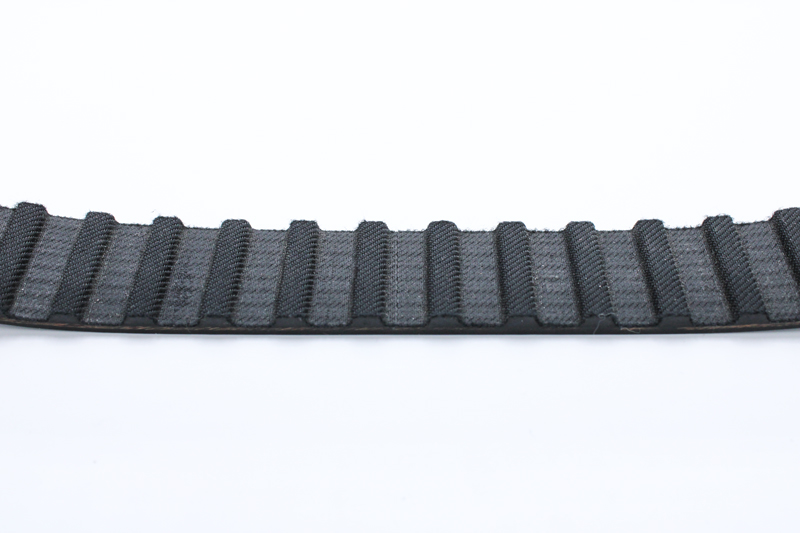

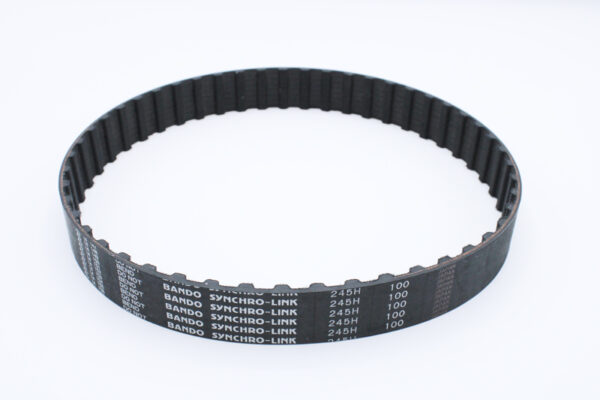

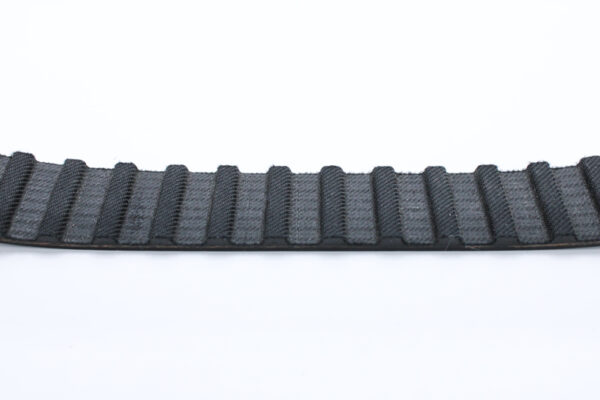

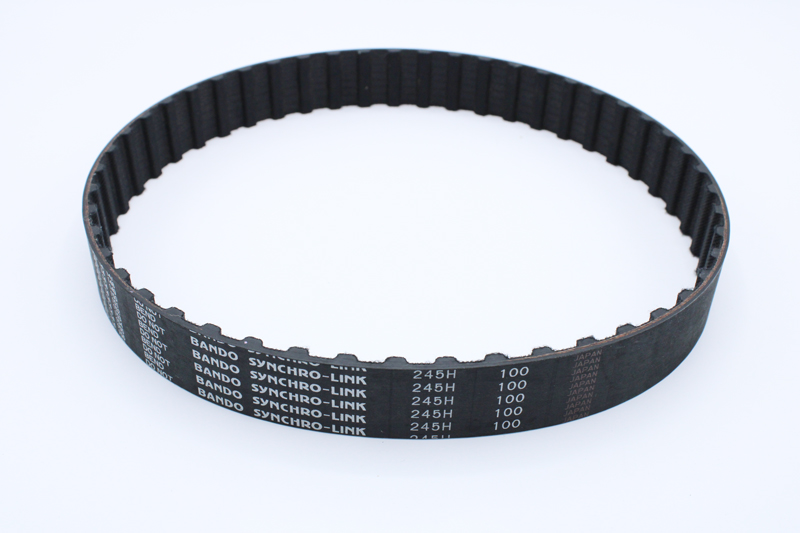

Synchronous Belt (Rubber)

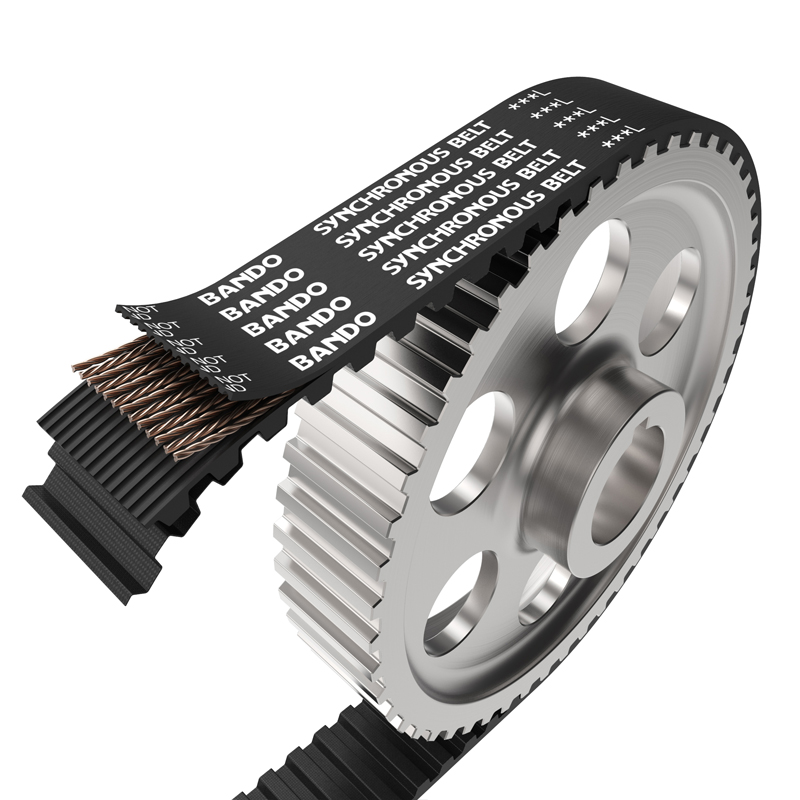

The synchronous belts are belts for synchronous power transmission that combine the features of gears, chains, and flat belts. They are available in abundant types and sizes and are therefore easy to design for a wide range of applications from light duty to heavy duty. They are available in synthetic rubber type and polyurethane type (Bancollan); select them based on their respective features.

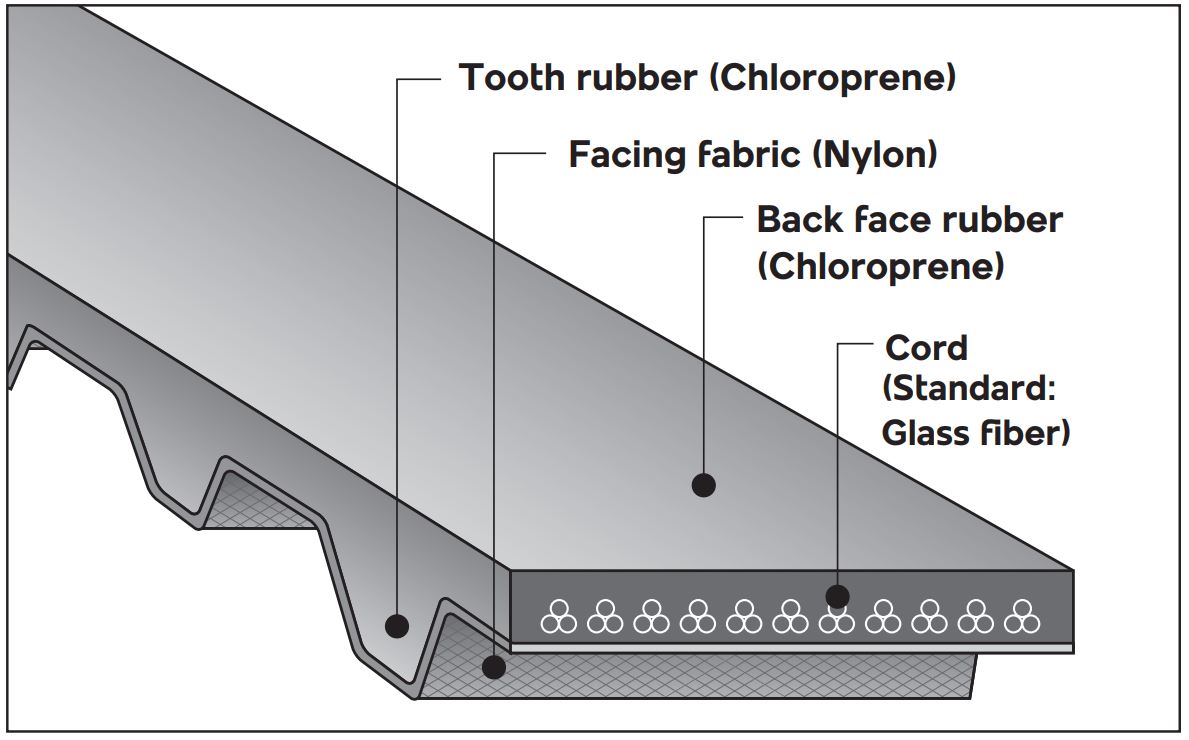

Structure
Features
Accurate power transmission
The belt and pulleys mesh accurately and therefore provider volitions and the amount of movement as calculated.
Economical power transmission
- No metal-to-metal contact eliminates the necessity for lubrications devices.
- As high initial tension is unnecessary, the bearing and motor can be miniaturized.
Wide range of operating conditions
In addition to the standard specifications, we manufacture the following special specification synchronous belts.
• Oil-resistant synchronous belt (when the belt is used where it is subject to a large amount of oil)
• Heat-resistant synchronous belt (when the belt is used at high temperatures from 90°C to 120°C)
• High-electrical-resistance synchronous belt (when insulation of 100 ＭΩ or more is required)

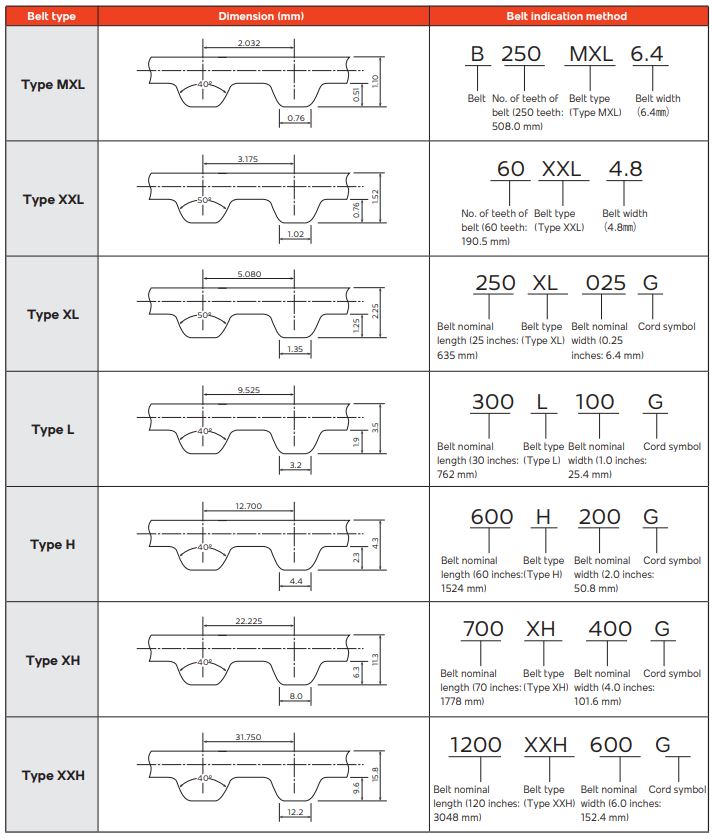

Belt dimensions and indication method
Synchronous Belt (Rubber)

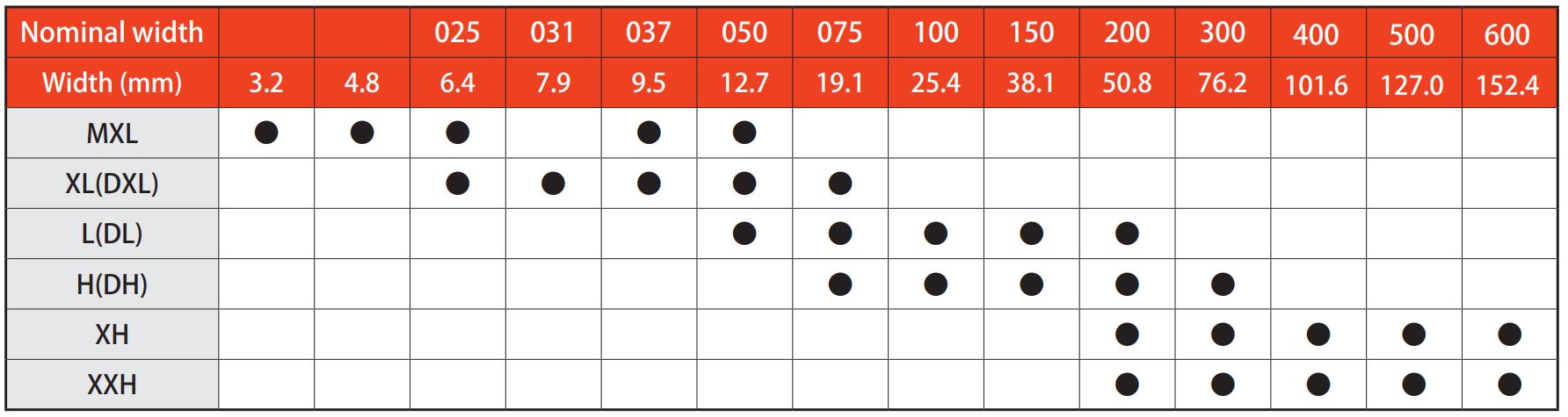

Rubber-Synchronous Belt standard widths
